DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a) Clear the DTC’s & make sure no DTC’s are present for Airbag system
a) Check whether any new DTC’s are getting qualified for repeated cranking.
b) Ensure the Airbag Warning Lamp Indication is continuously ON in Instrument Cluster for
4 seconds
after
Ignition ON
c) Ensure the Airbag Warning Lamp Indication goes OFF after
4 seconds
from Ignition ON.

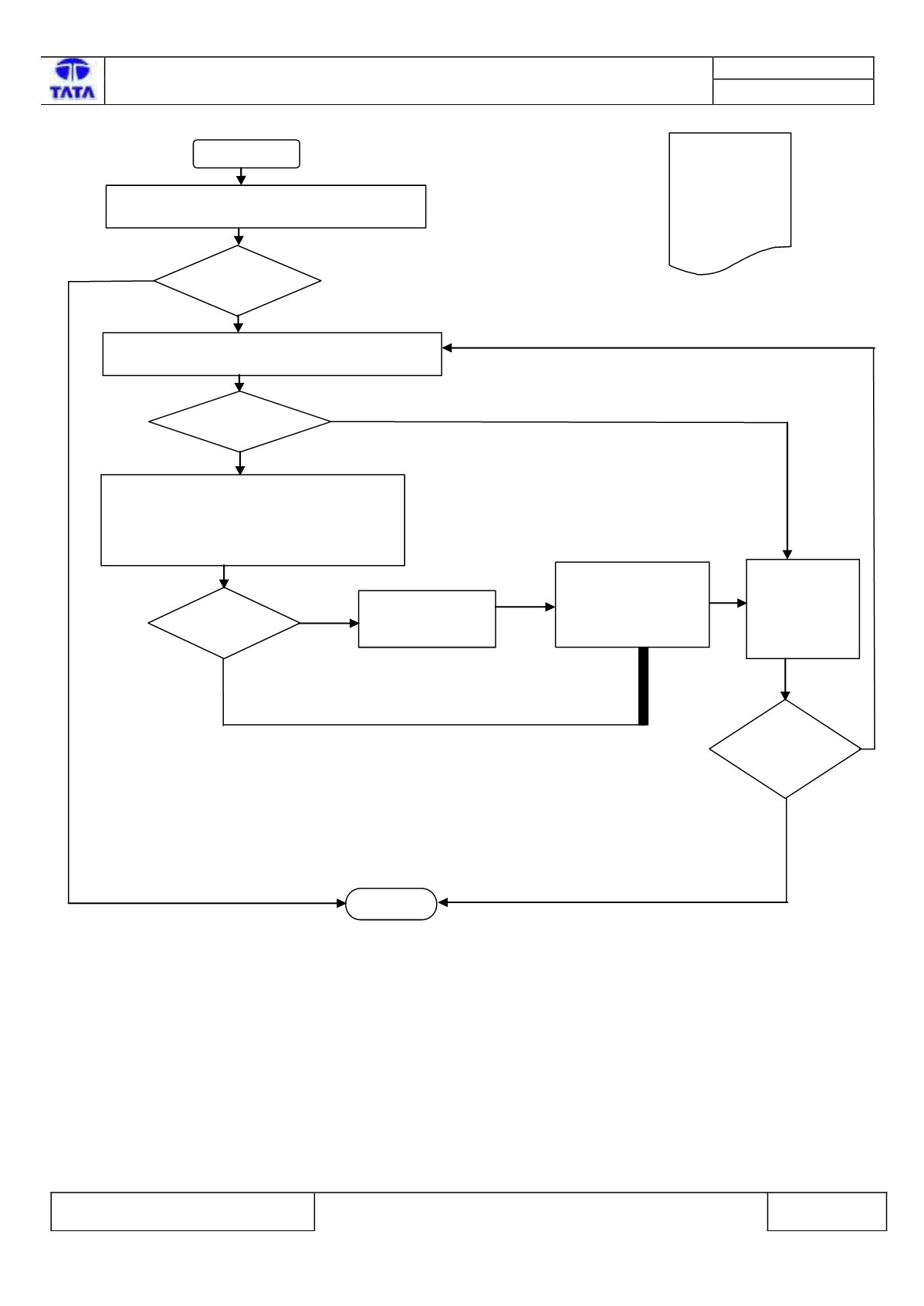

Circuit Schematic Diagram:-
Schematic shown below for illustration
Battery>>>>>Fuse>>>>Relay>>>>>>>Sensor/Actuator>>>>>ECU
IS DTC
PRESENT?
CLEAR DTC
’s . TURN OFF & ON IGNITION
.
CHECK FOR DTC’s (2 t
o 3 times)
IS DTC
STILL
PRESENT
?
1.REPLACE THE
DRIVER FIS
SENSOR.
2.TURN OFF
& ON THE
IGN
ITION.
3.CLEAR DTC’s
4.CHECK WHETHER THE DTC IS STILL
PRESENT.
IS DTC
PRESENT?
REPLACE
THE
ECU WITH A
NEW ONE
YES
NO
NO
YES
YES
NO
TURN OFF &
ON
IGNITION
.
CLEAR DTC
&
CHECK
FOR DTC’s
IS DTC
PRESENT?
NO
STOP
CONNECT THE
ECU
, DRIVER FIS
SENSOR
& W/H
MODULE IN
THE
VEHICLE
YES
START
B100E64::
Frontal
Impact
Driver
Sensor
signal
plausibility
failure.
TURN ON IGNITION.
CONNECT THE
DIAGNOSTIC TOOL AND CHECK FOR DTC’s
