Connector Location:-
The Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown
Connector View & Information:-

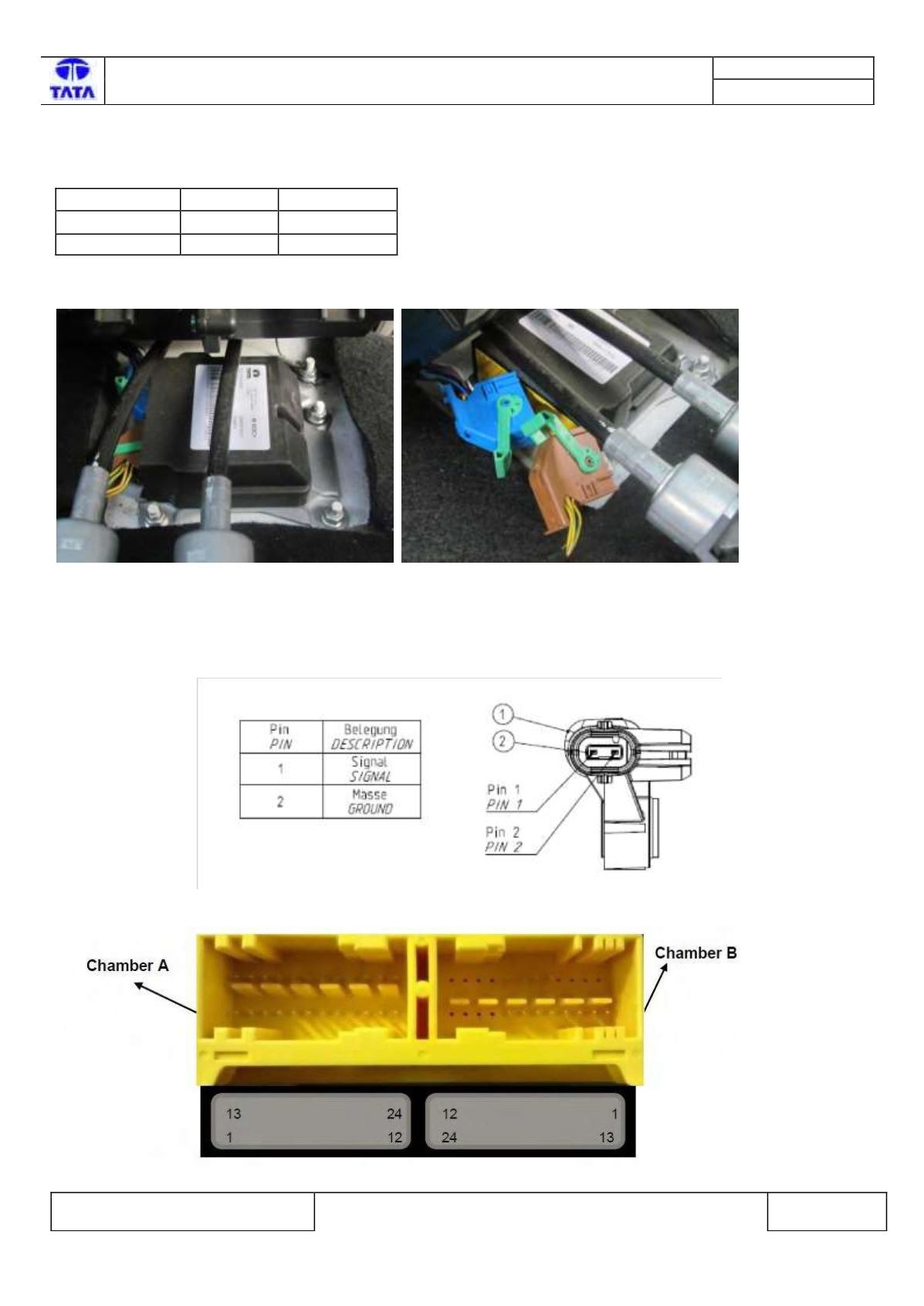

Fig126:- Driver Front Impact Sensor connector view.
Fig127:- Airbag ECU connector interface.
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:124 Airbag ECU location Fig:125 Airbag Wiring Harness connector
