Connector View & Information:-

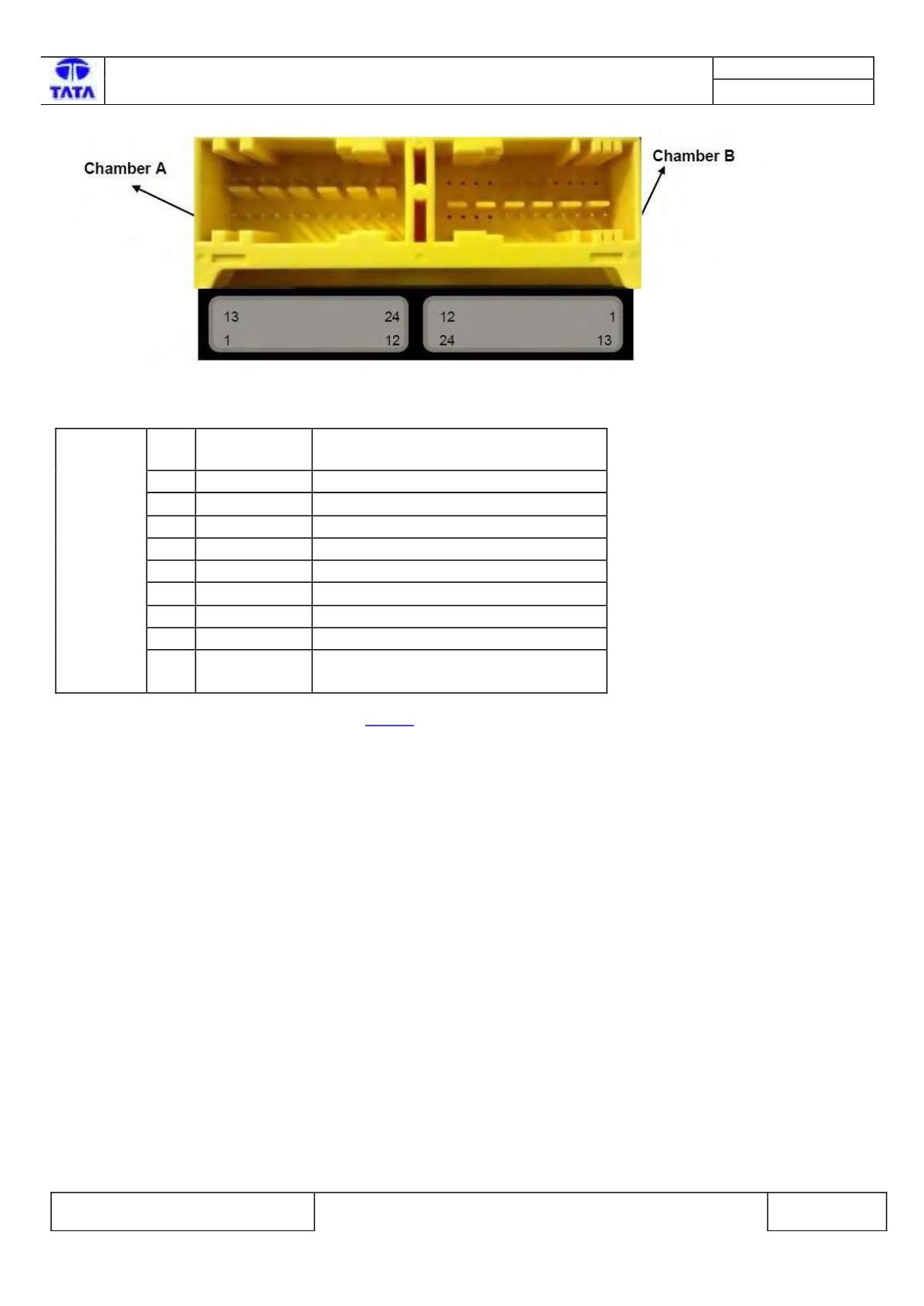

Fig46:- Airbag ECU connector interface.

Pin

No.

Pin Name

Description

CAN_H

CAN High

CAN_L

CAN Low

A_GND

Common Switch GND

PADS

Passenger Airbag Deactivation Switch

12 Vbat

Supply Voltage Battery

17 ABFP+

Front Airbag Passenger, Plus

18 ABFP-

Front Airbag Passenger, Minus

23 GND

Power GND

24 PADI

Passenger Airbag Deactivation

Indicator (via HW and CAN)

Please refer Airbag ECU Pin Assignment on

or more details.

Inspection Method:-

N.A.

CHAMBER A
