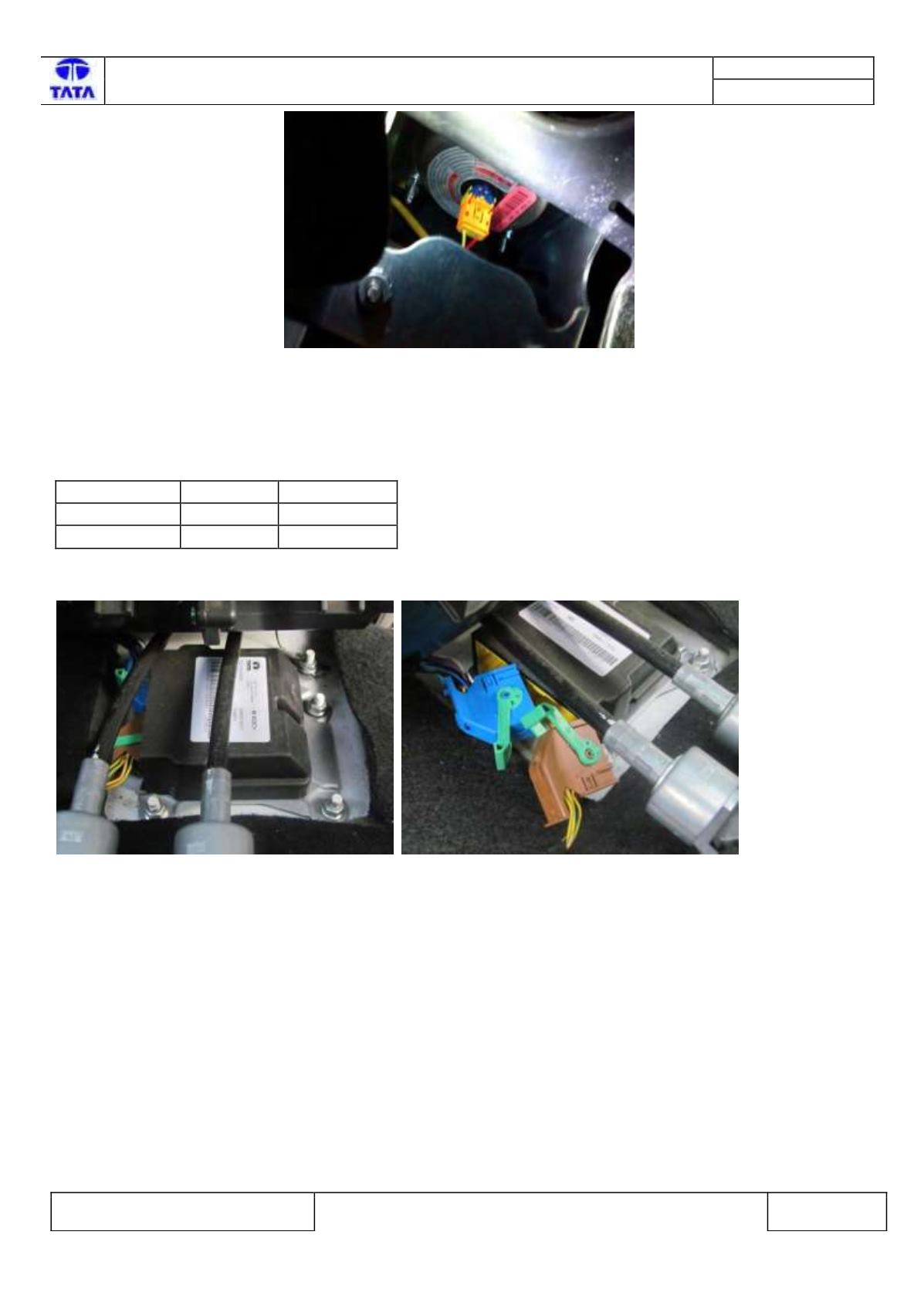

Fig49:- Passenger Airbag Module location / connector view
Connector Location:-
The Chamber Coding & color are:
Chamber
Coding
Color
Chamber A
D
Blue
Chamber B
C
Brown
Airbag ECU is fitted in the floor of central console in the car.
.
Fig:50 Airbag ECU location
Fig:51 Airbag Wiring Harness connector
