DTC’s confirmation:-
After rectification, ensure the following points before handing over the system to the customer
1) Battery Voltage is between 9 to 16V.
Component Location & Image:-
NA
Connector Location: -
Behind the CCM ECU
Body.

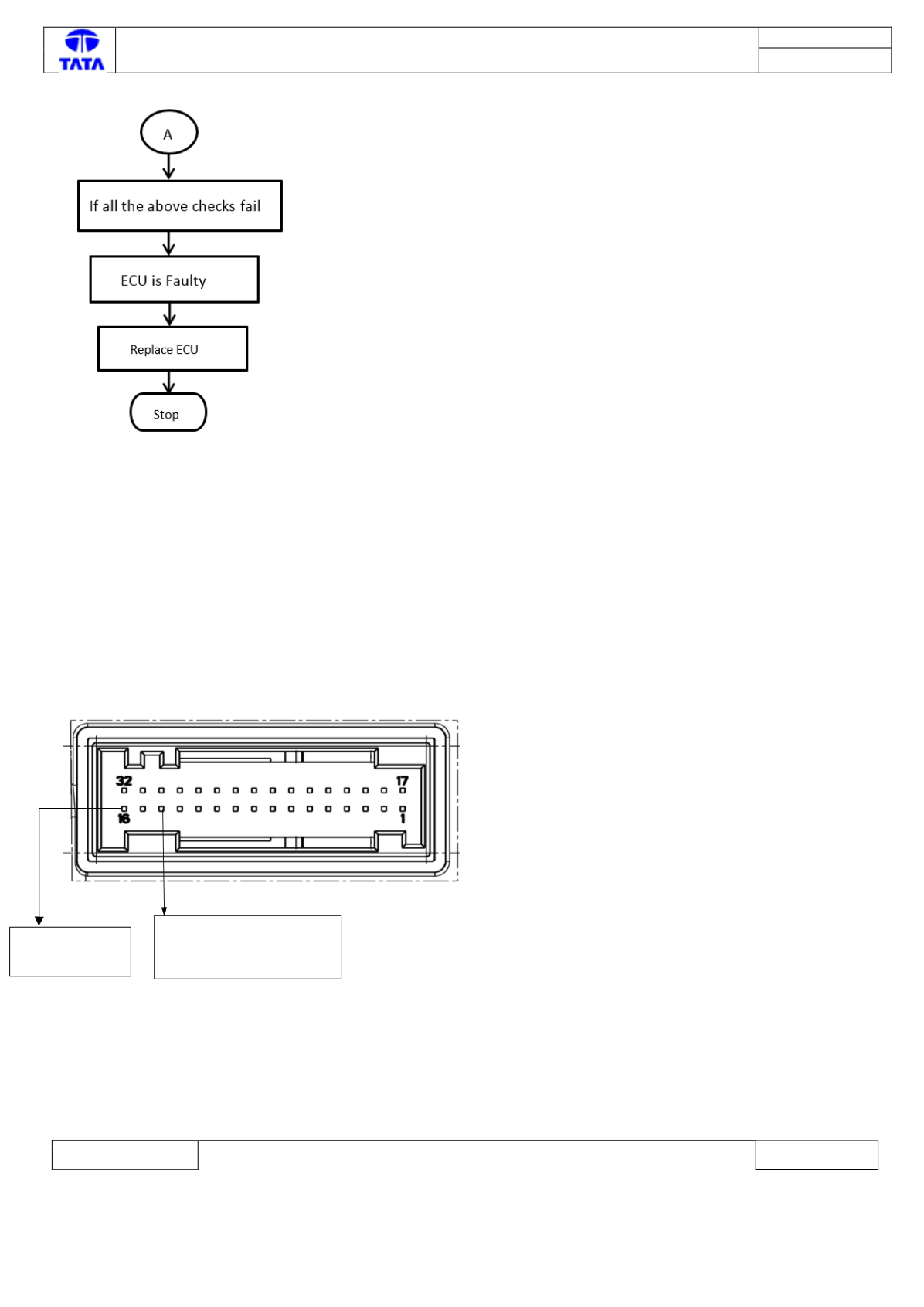

Connector View & Information:
(HVAC SIDE CONNECTOR)
Inspection Method: -
Use multimeter check continuity pin C2-14 & battery pin.
+Vbat(pin 16)
Reference voltage for
HVAC sensors (C2-14)
