DTC Troubleshooting Data
Version: 1.0
Date: 16-Oct-2018
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Author: ERC
Page: 159 of 202
Trouble Shooting:-
DTC’s confirmation:-
After rectification, ensure the following points before handing over the system to the customer
1)
Replacement of ECU
2)
Drive the vehicle on road and check the FATC
Component Location & Image:-
NA
Connector Location: -
Behind the FATC ECU Body.
Connector View & Information:
NA
Inspection Method: -
N/A

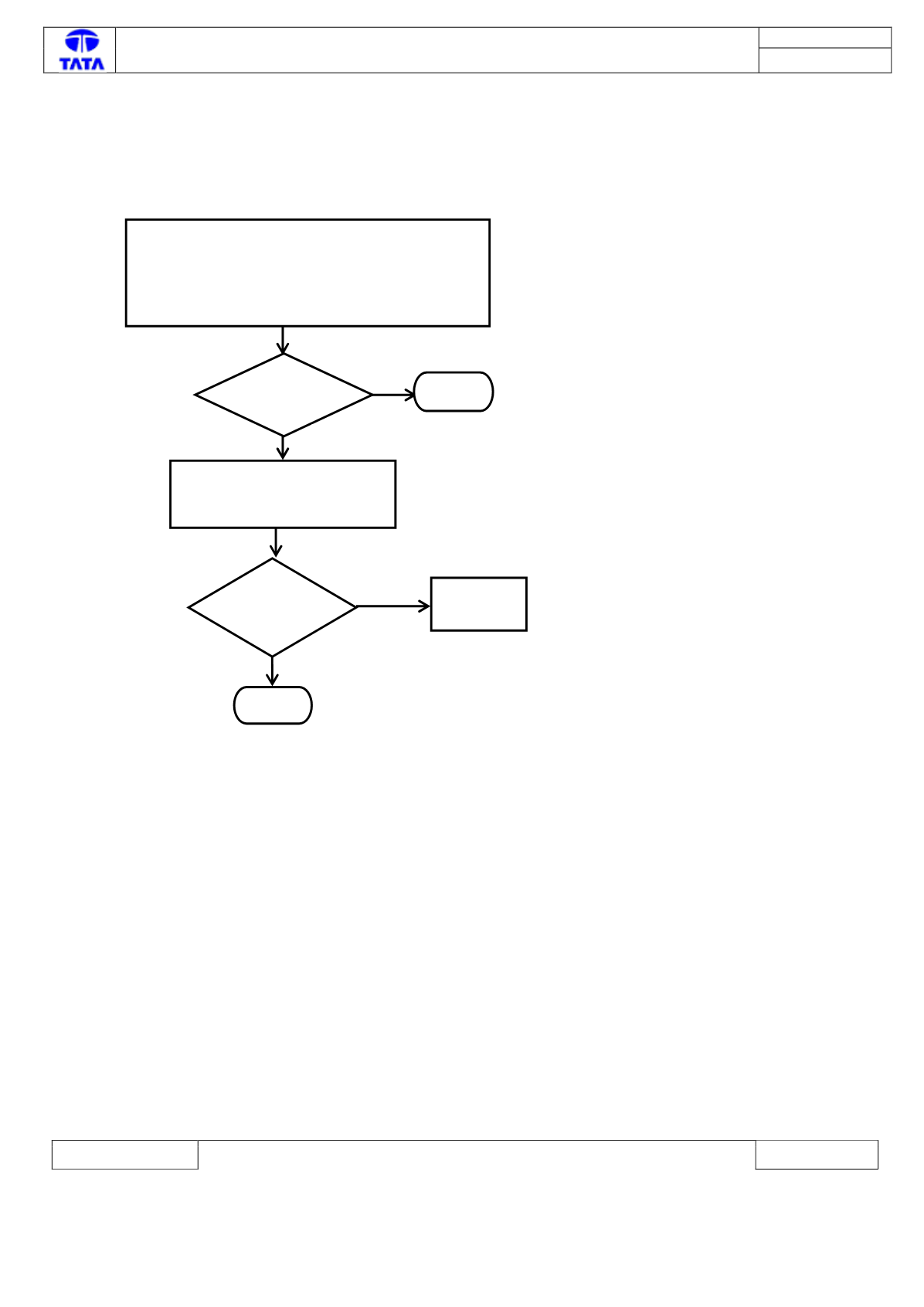

Reset the ECU. Remove the
power plug from ECU and
reconnect after about 5 minutes
Yes
No
IS DTC still
present?
Stop
Replace
the ECU.
Is DTC
Present?
Yes
No
Stop
. Connect the TML Diagnostic Tool.
1
. Turn the Ignition ON
2
. Check the status of DTC’s (Memorized/Current)
3
. Record the DTC & Clear
4
5. Turn Ignition OFF & ON
. Verify If
6
P0604 – 00
is present
