DTC Troubleshooting Data
Version: 1.0
Date: 16-Oct-2018
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Author: ERC
Page: 82 of 202
DTC’s confirmation:-
After rectification, Rotate temperature Knob and ensure the following points by referring Temperature parameters
using TML diagnostic tool before handing over to customer.
a)
Physical check of temperature variation when requested.
b)
Read ECU parameter,
Air Temperature Drive Motor A Output
.

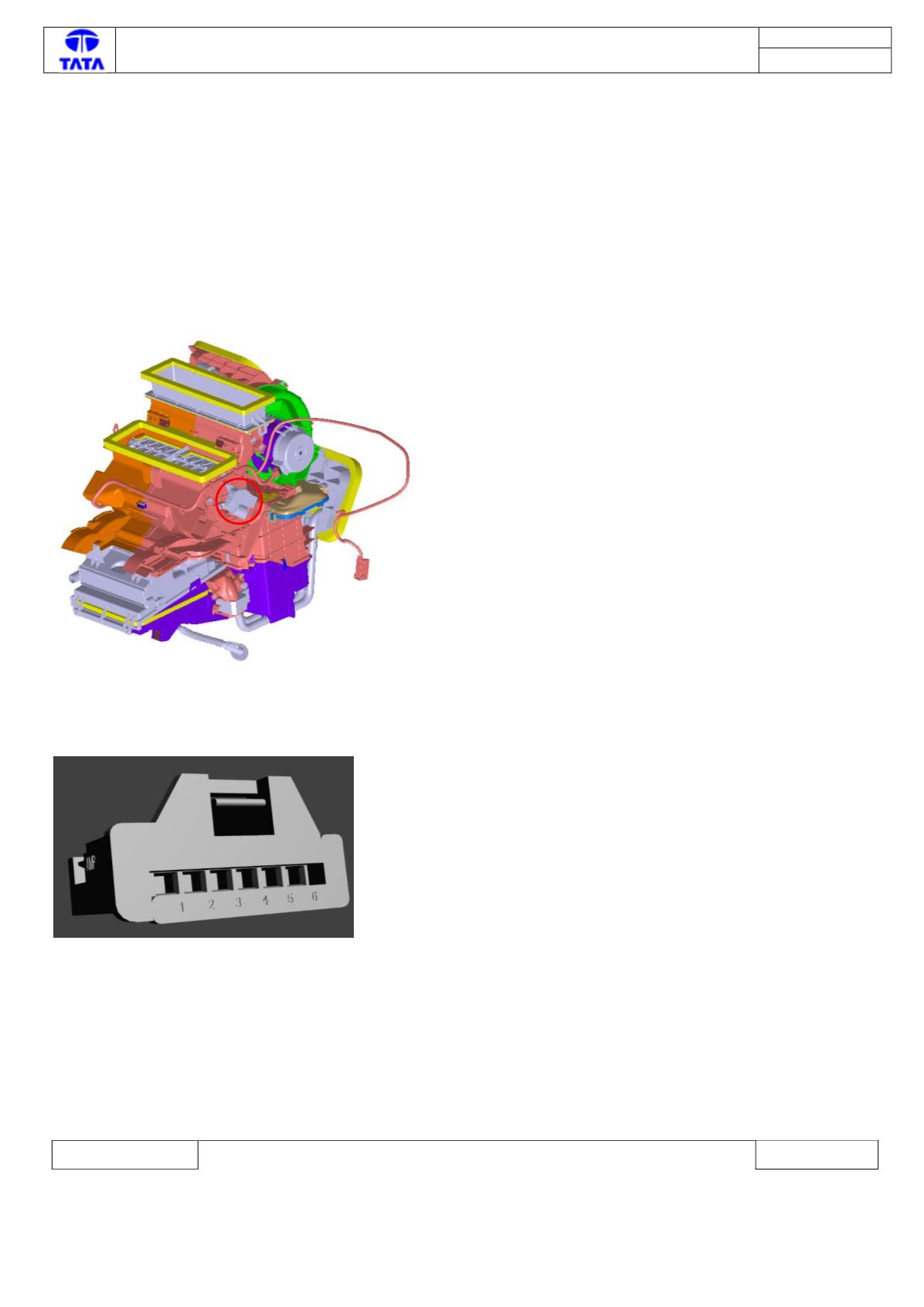

Component Location & Image:-
HVAC kit
Connector View & Information: -
Connector end view - showing the cable entry pin-out
