DTC’s confirmation:-
After rectification, Fresh/Recirc button from control panel and ensure the following points by Fresh/recirc
parameters using TML diagnostic tool before handing over to customer.
a) Physical check of Air inlet change when requested.
b) Read ECU parameters
Fresh Air/RECIRC Drive Motor B Output
, which should be requested values.

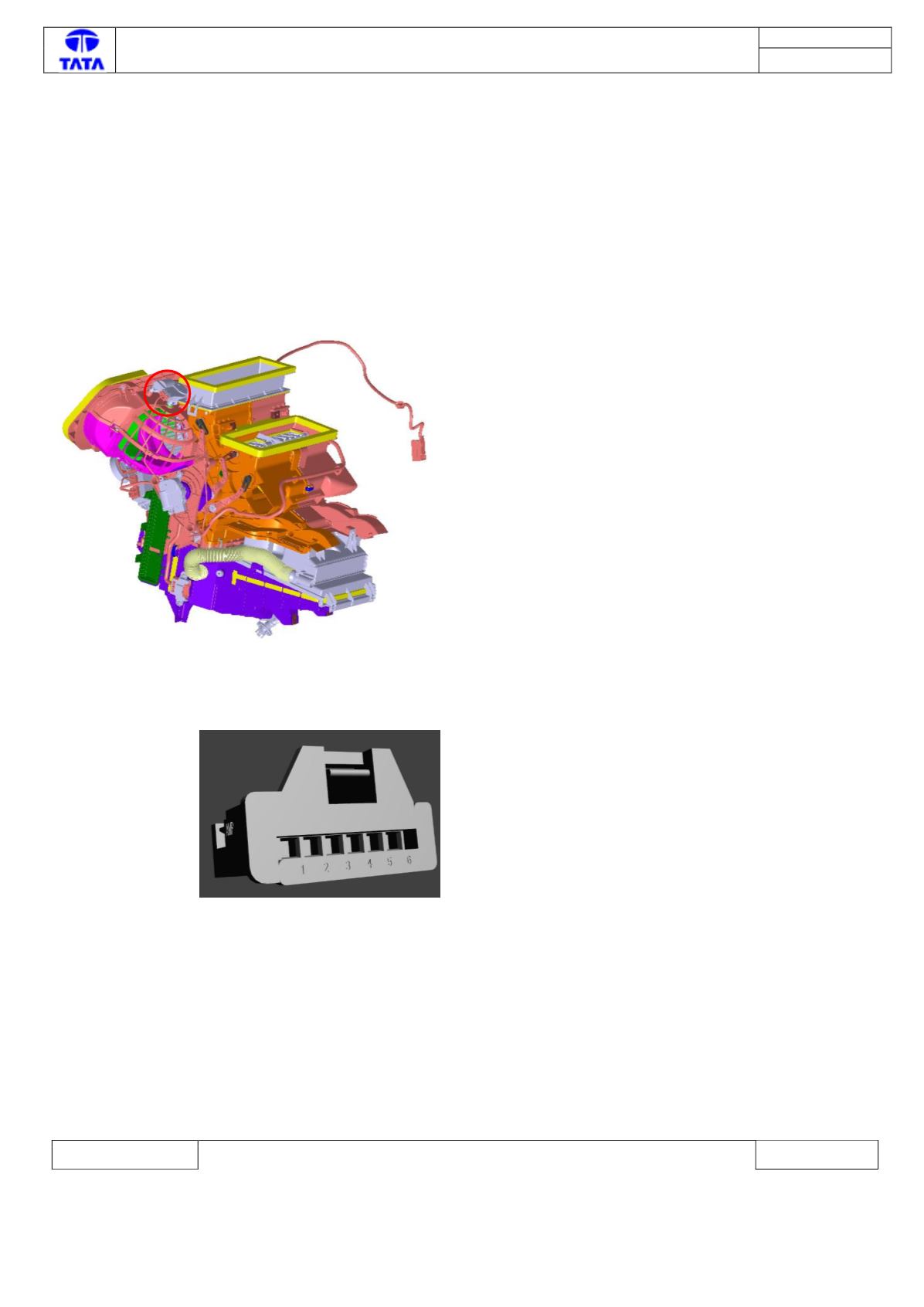

Component Location & Image:-
HVAC kit
Connector View & Information: -
