DTC’s confirmation:-
After rectification, Press mode button from control panel and ensure the following points by using TML diagnostic tool
before handing over to customer.
a) Physical check of mode change when requested.
b) Read ECU parameters
Air Distribution Drive Motor A Output
, which should be requested values.
Circuit Schematic Diagram:-
“Refer the circuit schematics from the tool”

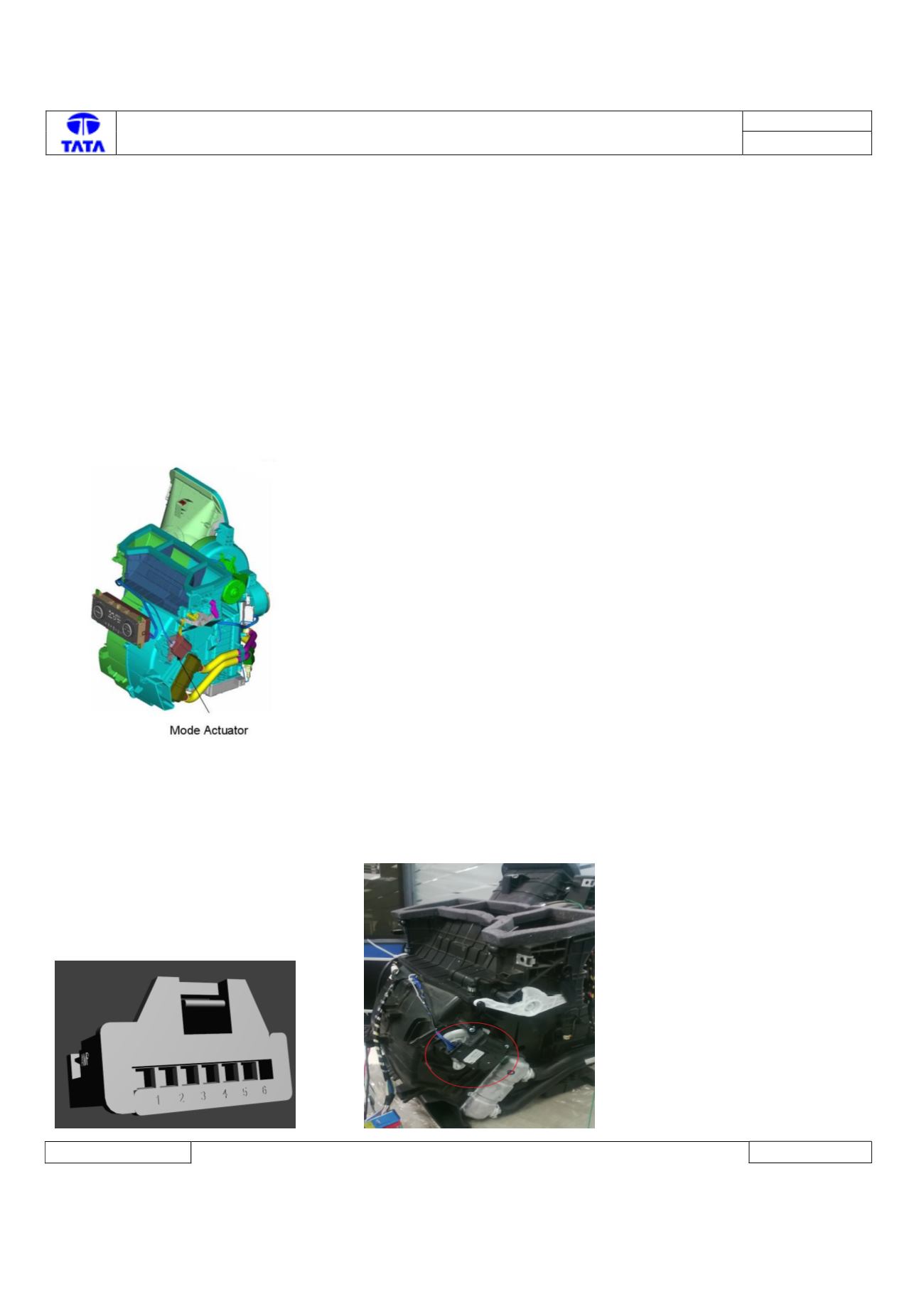

Component Location & Image:-
HVAC kit
Connector location:
HVAC kit
Connector View & Information: -
