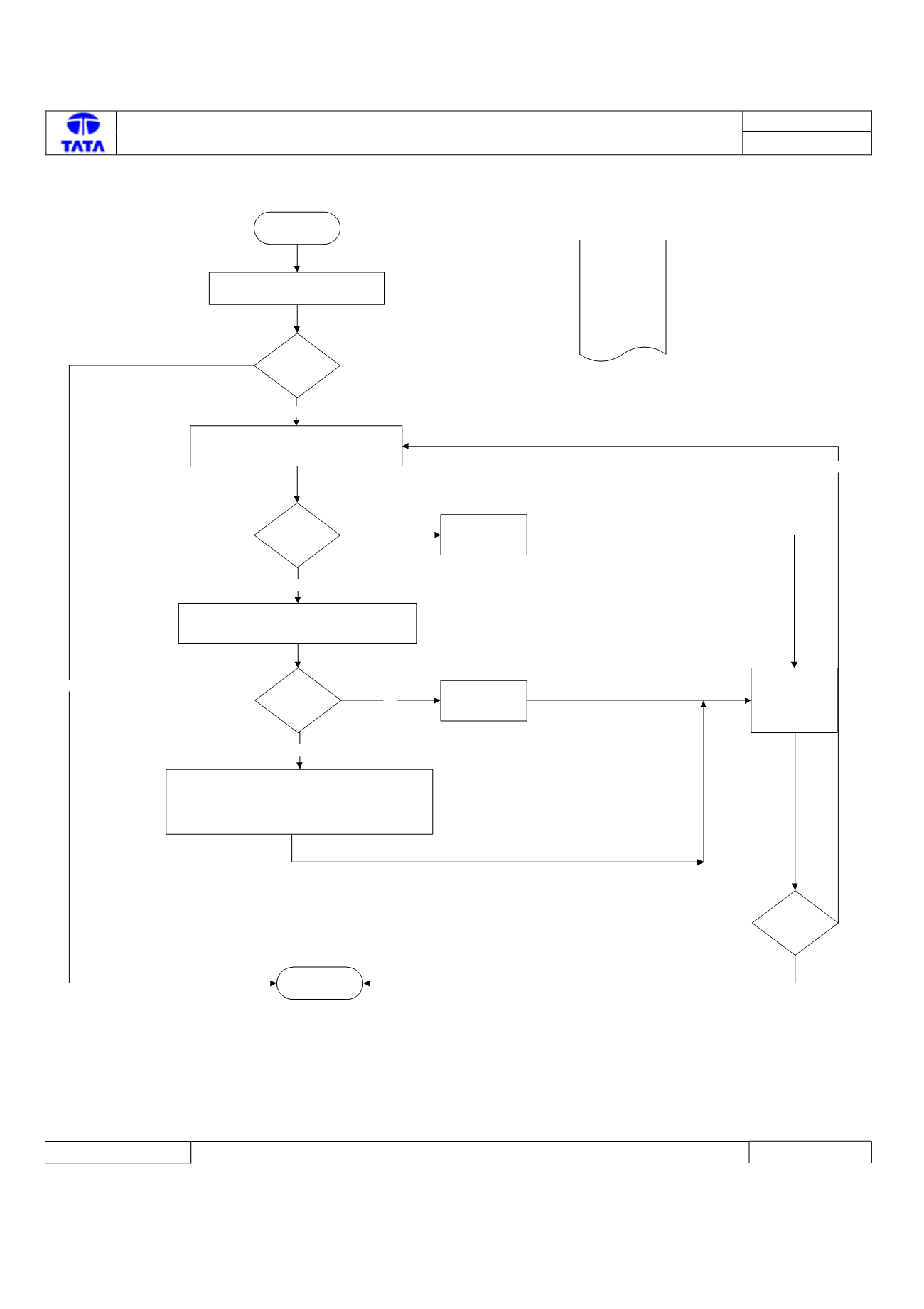

Trouble Shooting:-
START
CONNECT THE DIAGNOSTIC TOOL
AND CHECK FOR DTC’S
IS DTC
PRESENT?
CHECK DTC PRESENT IS PERMANENT OR
HISTORY
IS DTC
PERMANENT?
CLEAR DTC
CHECK THE FATC HVAC SIDE CONNECTOR
(BLUE) & FRESH RECIRCULATION ACTUATOR
FOR PIN BACK OUT
ARE PINS
OK?
CLICK ON ROUTINE TAB IN DIAGNOSTIC TOOL AND
CLICK ON START AND WAIT TILL CALIBRATION IS
DONE
STOP
FIX THE
PROBLEM
IS DTC
PRESENT?
NO
YES
B1F3F-
54::FRESH/
RECIRC DOOR
CONTROL
MOTOR
CALIBRATION
FAULT
YES
YES
YES
NO
NO
CRANK THE
VEHICLE AND
CHECK FOR
DTC’S
NO
