{Osprey CCM}

DTC Troubleshooting Data

Version: 2.0

Date: 28-Jul-17

Author: ERC

Page: 78 of 244

Copyright ©

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

DTC’s confirmation:-

After rectification,Press Ac button from control panel ensure the following points by AC parameters using TML diagnostic

tool before handing over to customer.

a) Physical check of AC status change when requested.

b) Read ECU parameters 4A45, which should be requested values.

Circuit Schematic Diagram:-

“Refer the circuit schematics from the tool”

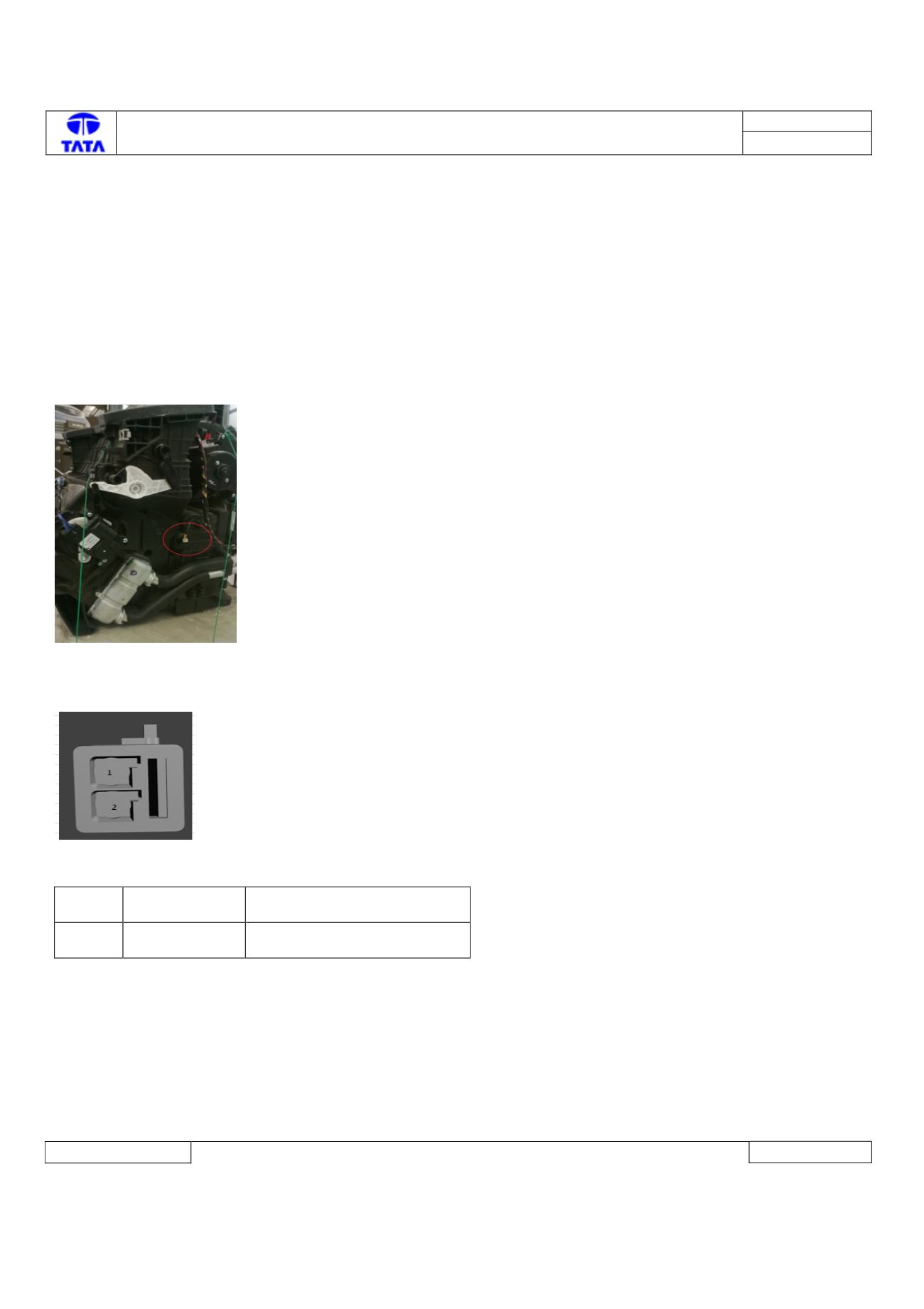

Component Location & Image:-

AC System

Connector Location: -

HVAC kit

Connector View & Information: -

Pin Details:-

1

EVAPSensSig

Sensor Temperature

Evaporator Signal

2

EVAPSensGnd

Sensor Temperature

Evaporator Gnd

Inspection Method: -

1) Connect the sensor connector firmly

2) If the values seen on the diagnostics tool in read ECU parameters is not getting updated then replace the sensor

3) If there is a continuity between the sensor signal and ground lines correct the wiring harness (wiring harness short to

ground)
