DTC’s confirmation:-
After rectification, Rotate Fan Knob from control Panel and ensure the following points by referring Fan Speed parameters
using TML diagnostic tool before handing over to customer.
a) Physical check of Fan Speed change when requested.
b) Read ECU parameter
Blower Motor Drive Signal Output
, which should be requested values.
Circuit Schematic Diagram:-
“Refer the circuit schematics from the tool”

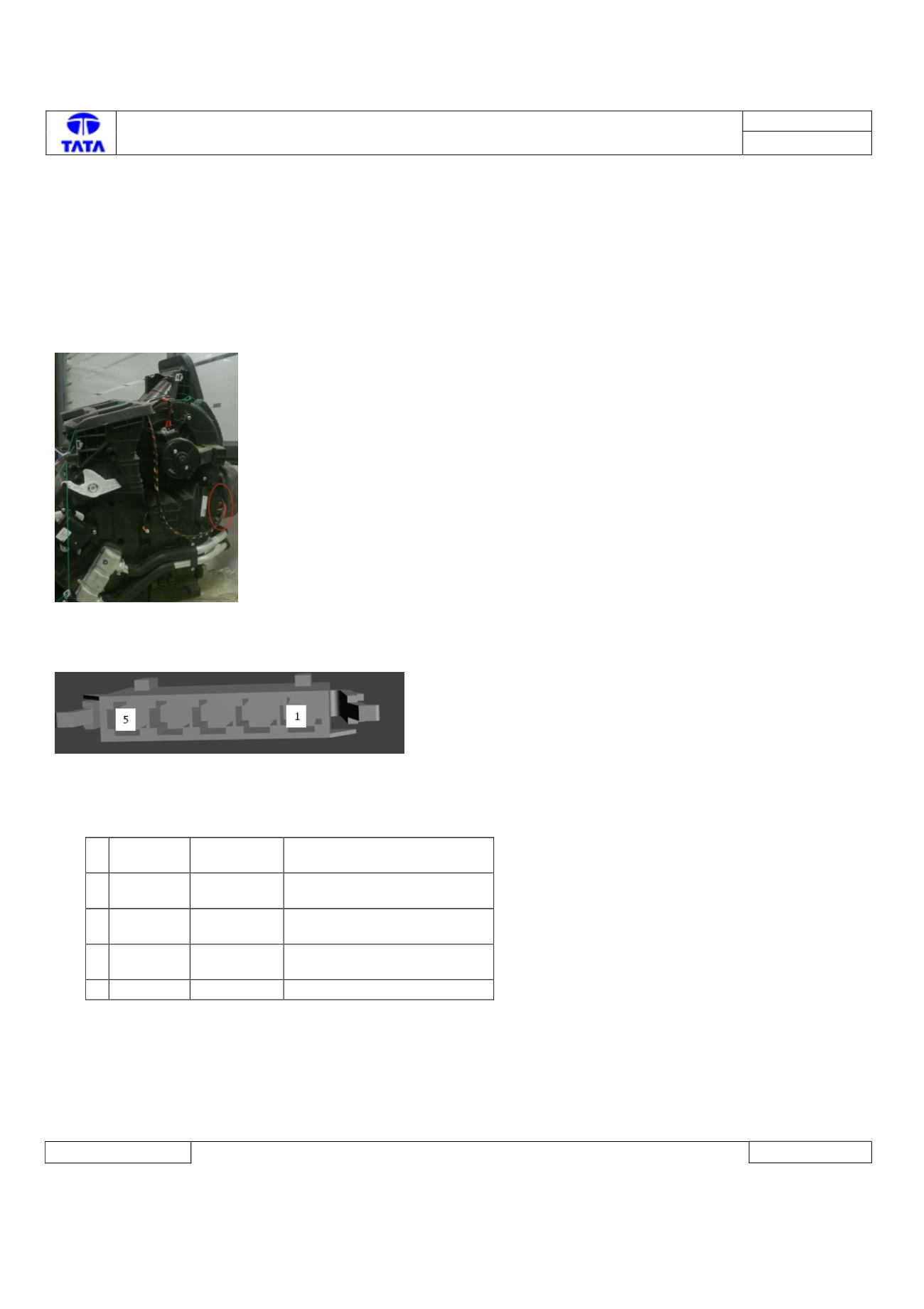

Component Location & Image:-
Connector Location: -
HVAC kit
Connector View & Information: -
PIN Assignment
1
CtrlSig
Control
Signal
PWM
2
DiagSig
Diagnostic
signal
Analog
3
-MotSig
Motor
signal
Analog
4
ACC
Supply
ACC
Supply
Power
5
Gnd
Ground
Gnd
Inspection Method: -
1) If there is no continuity between the Blower control circuit & ECU connector then correct the wiring harness
