DTC’s confirmation:-

After rectification, Rotate temperature Knob from FATC control Panel and ensure the following points by referring

Temperature parameters using TML diagnostic tool before handing over to customer.

a) Physical check of temperature change when requested.

b) Read ECU parameters ,

Air Temperature Drive Motor A Output

Circuit Schematic Diagram:-

“Refer the circuit schematics from the tool”

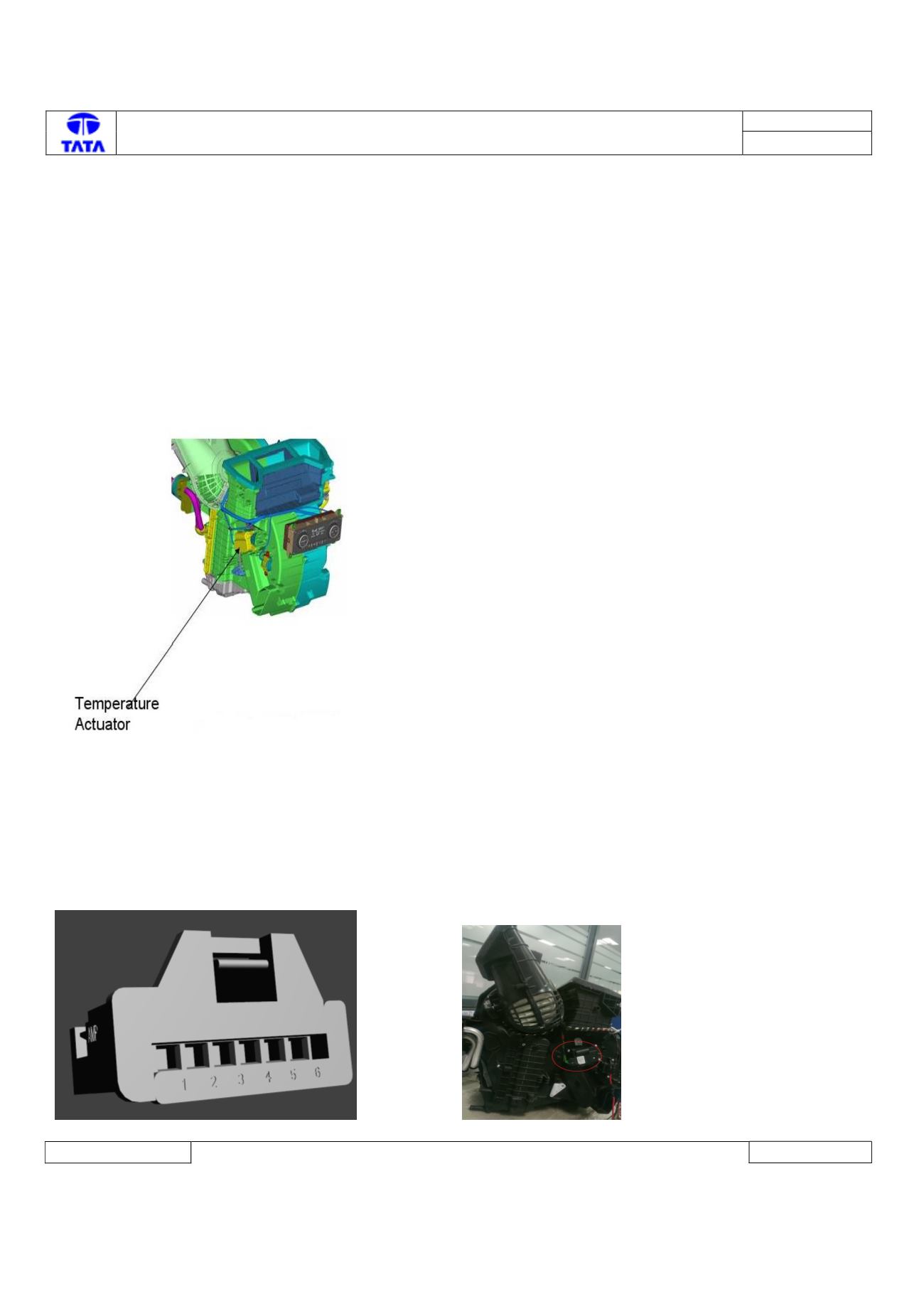

Component Location & Image:-

Connector Location: -

HVAC kit

Connector View & Information: -

Connector end view - showing the cable entry pin-out
