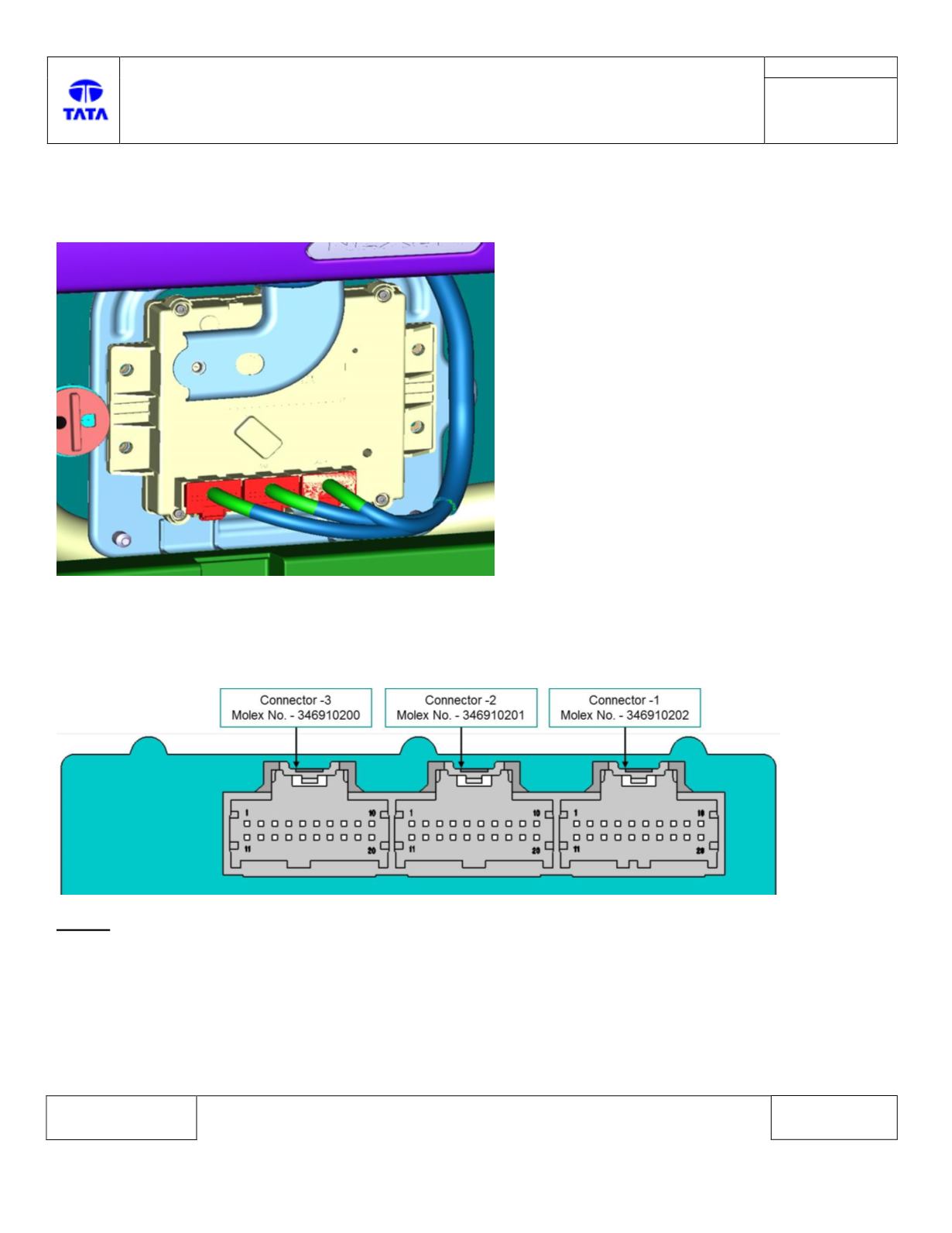

Connector Location:-
PEPS ECU:-
Connector View & Information:-
PEPS
NOTE:-
Please refer PEPS ECU drawing for connector PIN details.
Inspection Method:-
1. In Ignition, if clutch pedal is de-pressed/release telltale will turn-on & if clutch pedal is pressed than clutch
telltale on IPC will turn-off.
2. Press clutch pedal followed by pressing Engine start/stop button, vehicle should crank.
