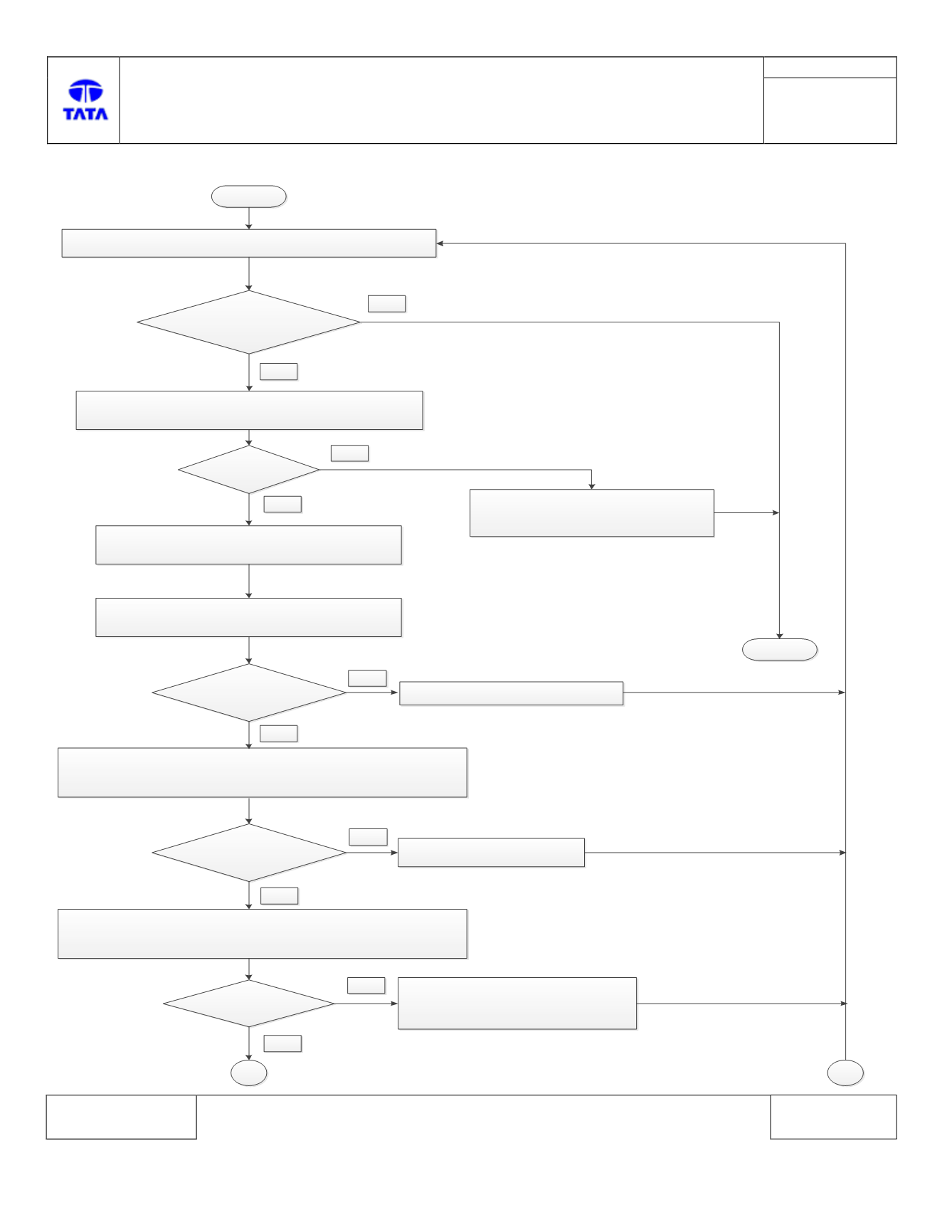

Troubleshooting:-
Start
Connect Diagnostic tool and Check for DTCs.
Is
DTC B164B – 14
present?
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Yes
Stop
No
Check DTC present is Current or Historic
Is
History?
Yes
No
1. Clear the DTC from memory.
2. Turn IGN OFF.
3. Turn ON IGN.
Check PEPS connector for terminal
backout.
Are
connectors
loose?
1. Remove PEPS Connectors.
2. Perform visual check of connectors for pins bent or
damaged etc.
Reconnect connectors firmly
Yes
No
Is
connector
faulty?
Correct connector fault
(Terminals Bend)
Check continuity between PEPS mating connector pin
[C3-18]
(Harness side) with ground
[C3-1]
Yes
No
Continuity
Found?
Correct PEPS mating
connector Side wiring harness
(Short to Ground)
Yes
No
A
B
