Trouble Shooting:
DTC’s healing confirmation:
If the ABS/ESP lamp on Instrument Cluster goes OFF, DTC is healed. DTC might still be present in the history and can be
cleared.
Circuit Schematic Diagram:
Please refer t
o Annex 1.
Component/Connector Location & Image:
Please refer to
Annex 3 .Connector View & Information:
Please refer to
Annex 2 .Inspection Method:
N.A.

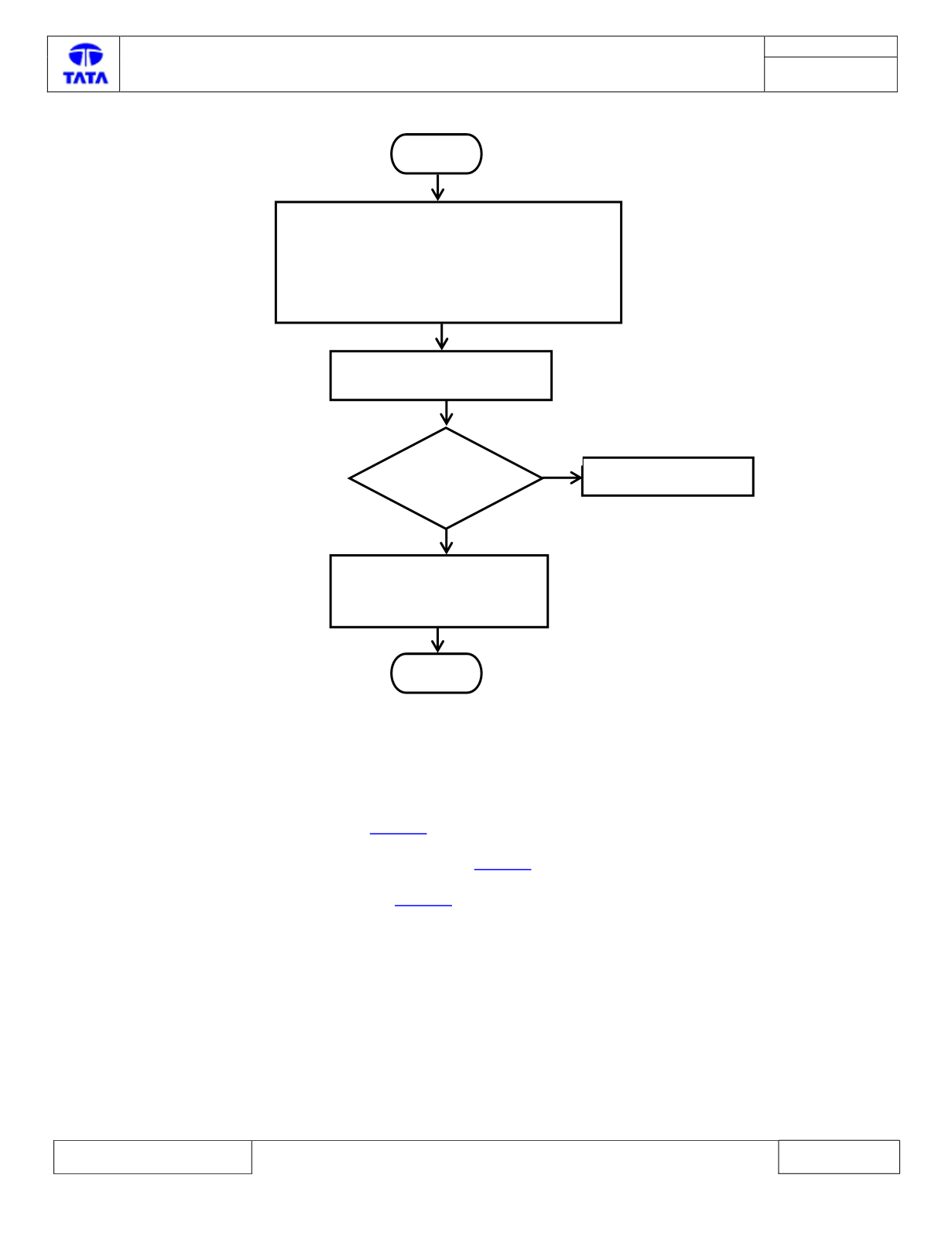

START
STOP
1. CONNECT THE TML DIAGNOSTIC TOOL.
2. TURN THE IGNITION ON.
3. CHECK THE STATUS OF DTC’s (MENORIZED/CURRENT)
4. RECORD THE DTC AND CLEAR.
5. TURN IGNITION OFF & ON.
6. VERIFY IF DTC U3006-16 IS PRESENT
CHECK BATTERY FOR CHARGING
IS BATTERY
CHARGING?
REPLACE THE BATTERY
NO
YES
1. CLEAR DTC
2. TURN IGNITION OFF & ON.
3. WAIT FOR 30 SEC
