Trouble Shooting:-

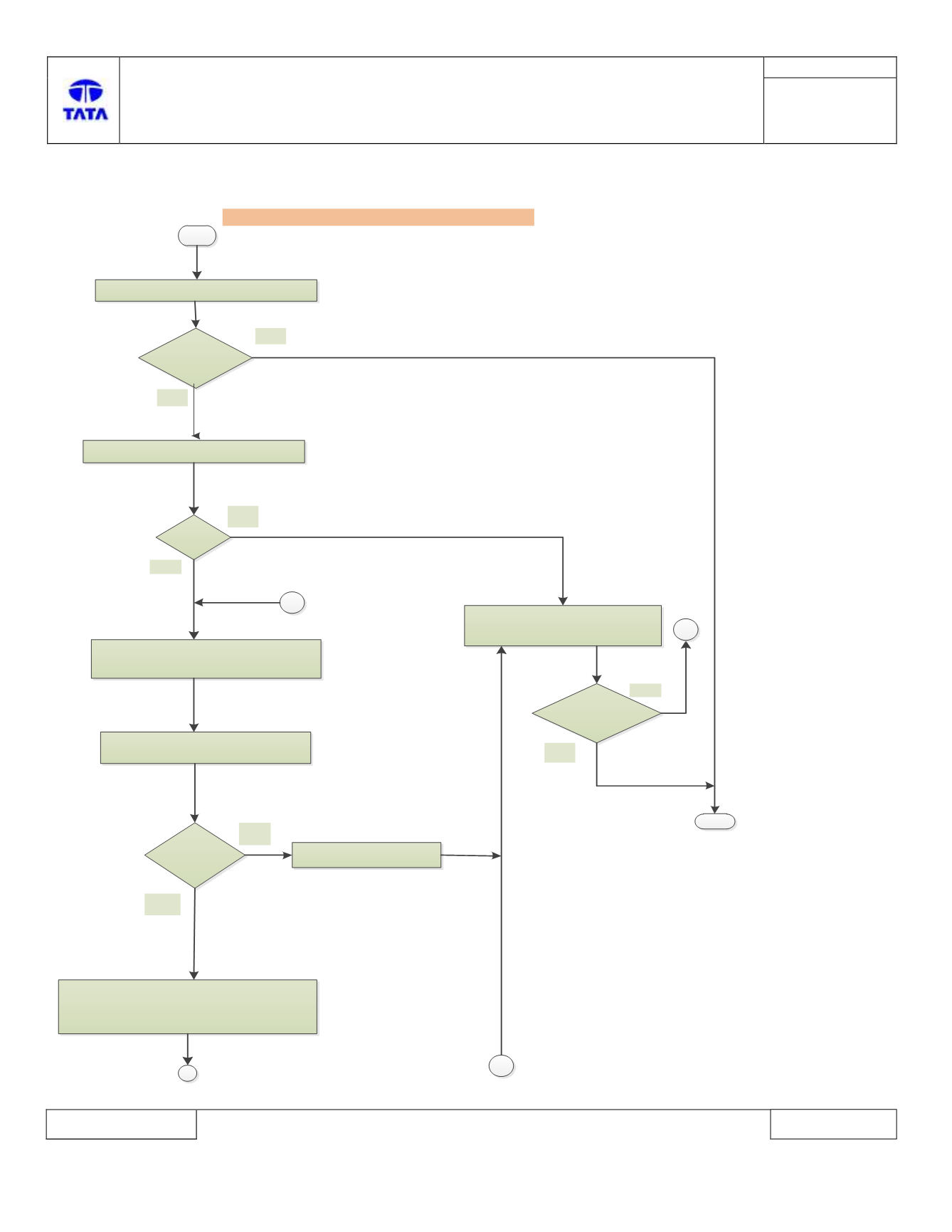

B1324 – 09: Window winding switch implausible – Component
Failures
START
Connect Diagnostic tool and check for DTCs
Is DTC B1324 – 09
present?
STOP
NO
Check DTC present is Permanent or Historic
Is History?
1. Clear the DTC from memory
2. Turn the IGN to OFF
3. Start the IGN
Is DTC B1324-09
present?
YES
NO
YES
YES
NO
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check BCM and Window winding switch (
light) connectors for terminal backout
Are connectors
loose?
Reconnect connectors firmly
YES
1.Remove BCM side wiring harness Connector.
2.Perform visual check of connectors for pins bent
or damaged etc.
NO
A
B
C
C
