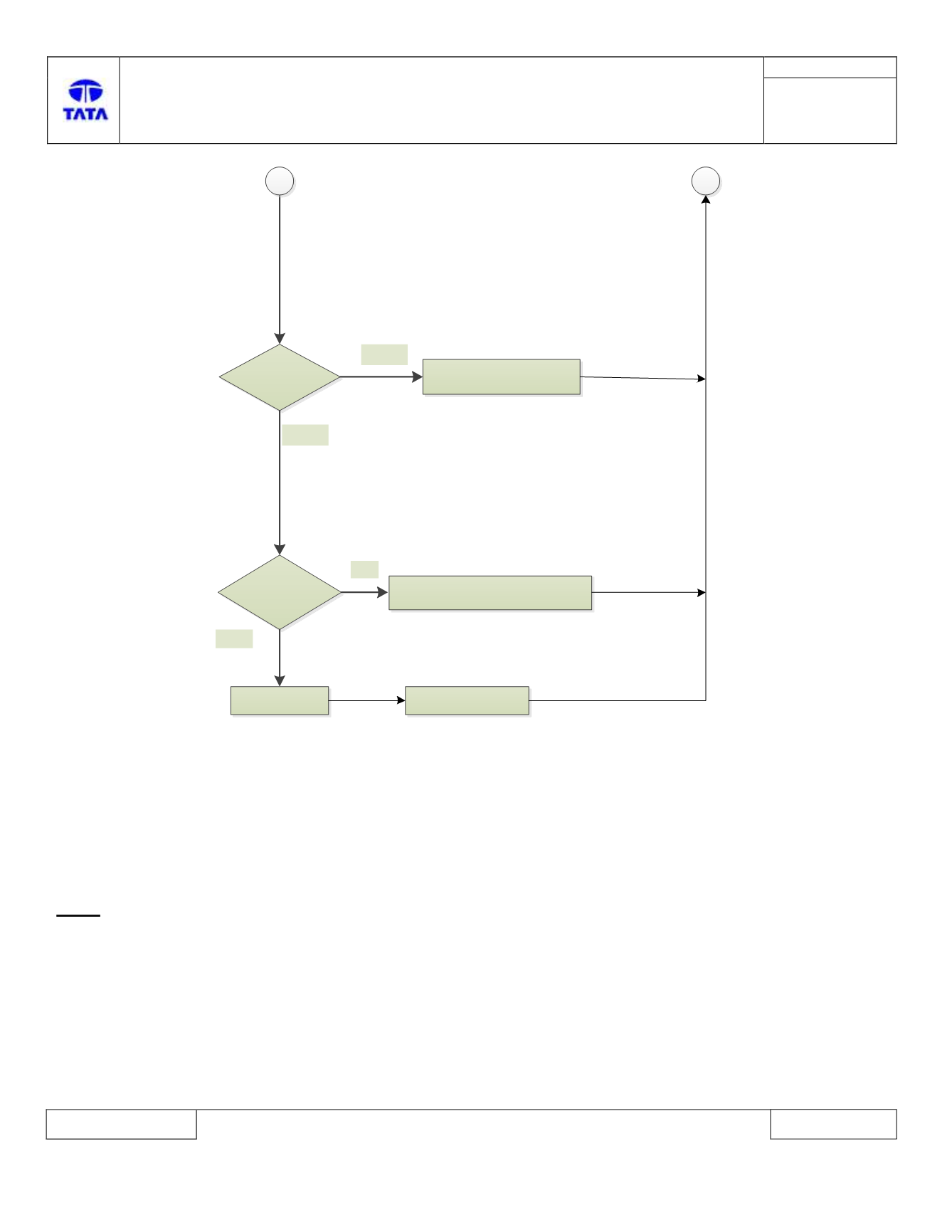

Check Key In,
Accessory and
Ignition ON?
NO
Check Key In,
Ignition and Crank
ON and Accessory
OFF?
YES
NO
1. Ignition switch faulty.
2. Replace Ignition switch.
C
D
BCM ECU Faulty
1. Ignition switch faulty.
2. Replace Ignition switch.
YES
Replace BCM ECU
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
Check DTC U1014 - 09 is not logged
Circuit Schematic Diagram:-
Note:
For detailed information please refer latest BCM wiring harness schematic.
Connector View & Information: -
Please refer respective BCM Drawing for BCM connector PIN details.
Inspection Method: -
NA
