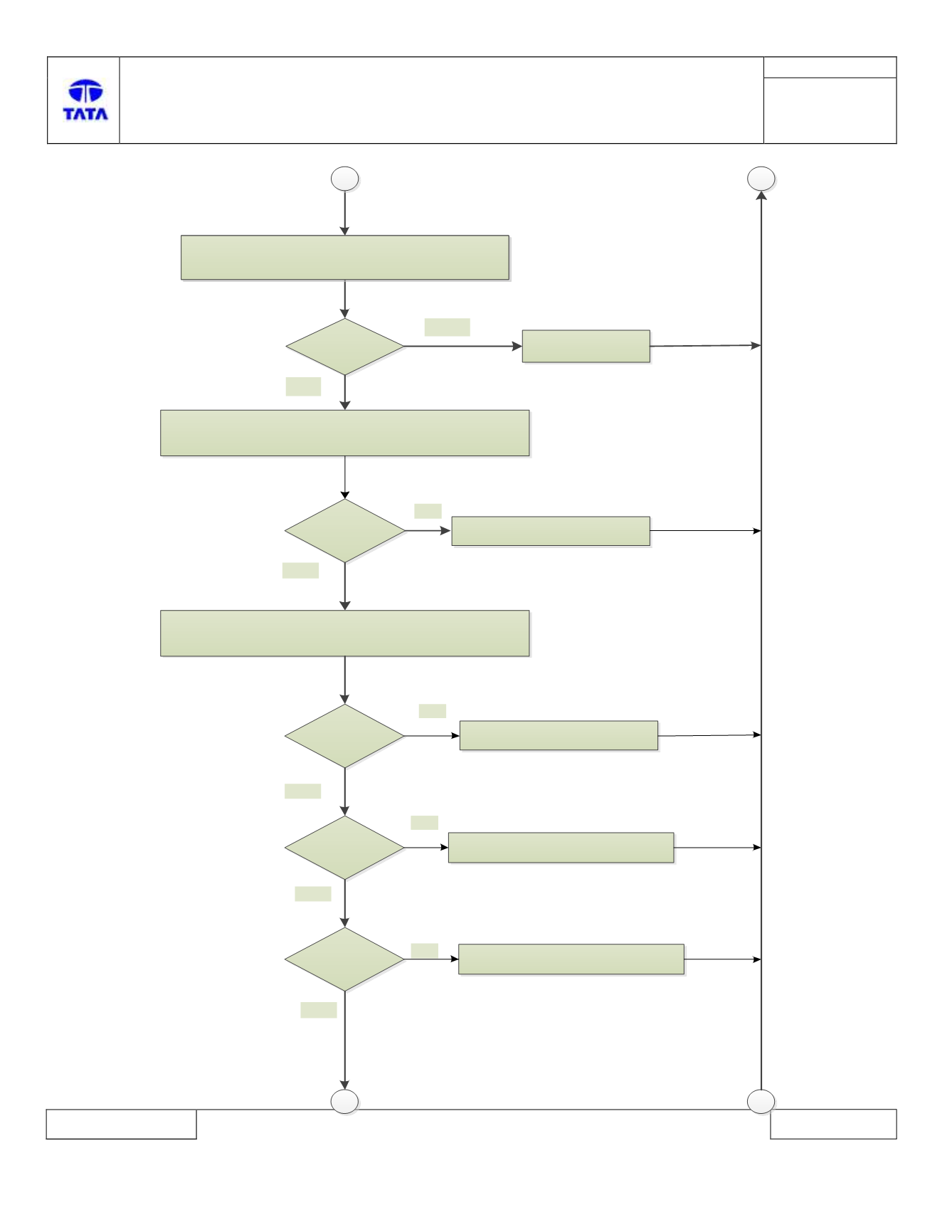

Check continuity between BCM matting connector pin
[C1-23]
and Ignition switch matting connector pin (Accessory)
Continuity Found?
Correct Wiring harness
NO
YES
Check continuity between BCM matting connector pin
[C1-9]
and Ignition
switch matting connector pin (Ignition)
Continuity Found?
YES
NO
Correct Wiring harness
A
B
Check continuity between BCM matting connector pin
[C1-21]
and
Ignition switch matting connector pin (Crank)
Continuity Found?
YES
Correct Wiring harness
NO
Check Key In ON?
1. Ignition switch faulty.
2. Replace Ignition switch.
NO
YES
Check Key In and
Accessory ON?
1. Ignition switch faulty.
2. Replace Ignition switch.
NO
YES
C
D
