Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.4
Date: 15 May 2018
Author: Body CoC
Page: 119 of 855
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Open Circuit?
Perform the visual check of Combiswitch mating
connectors for pin bend or damaged etc.
Is connector faulty?
Check continuity at Position Lamp Switch contact of
combiswitch mating connector with Battery ground.
Continuity found?
BCM ECU Faulty
Correct wiring harness
(Open Circuit)
YES
NO
Correct connector fault at combi
switch mating connector
(Terminal Bend)
Correct connector fault at combi switch
mating connector
(Short to ground)
YES
NO
YES
NO
Replace BCM ECU
Check continuity between Position Lamp Switch terminal
and Battery ground terminal of combiswitch connector
(Please refer the combiswitch drawings)
Continuity found?
YES
1. Combiswitch is faulty
2. Replace combiswitch
NO
A
B

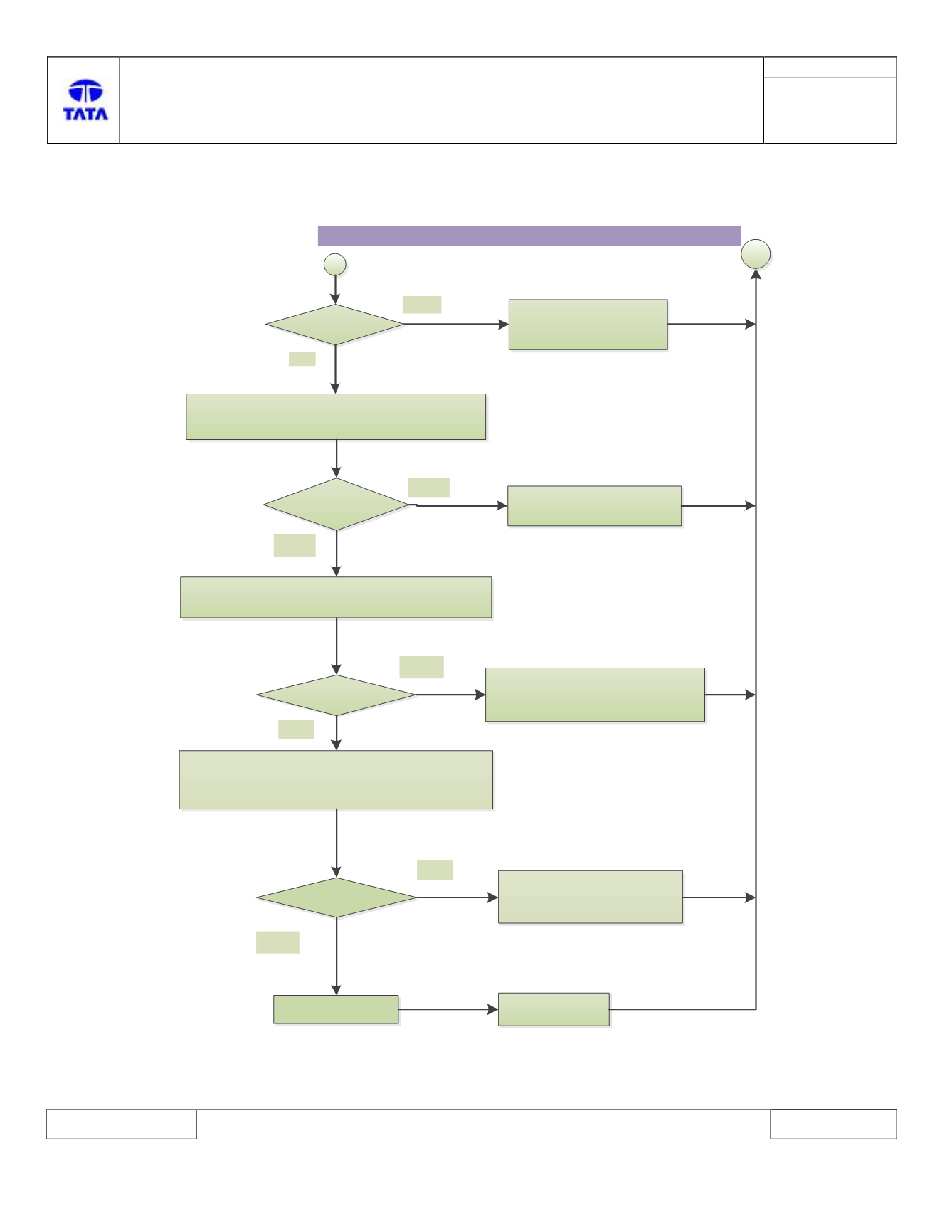

B2236 – 11: Position Lamp Signal – Circuit Short To Ground
