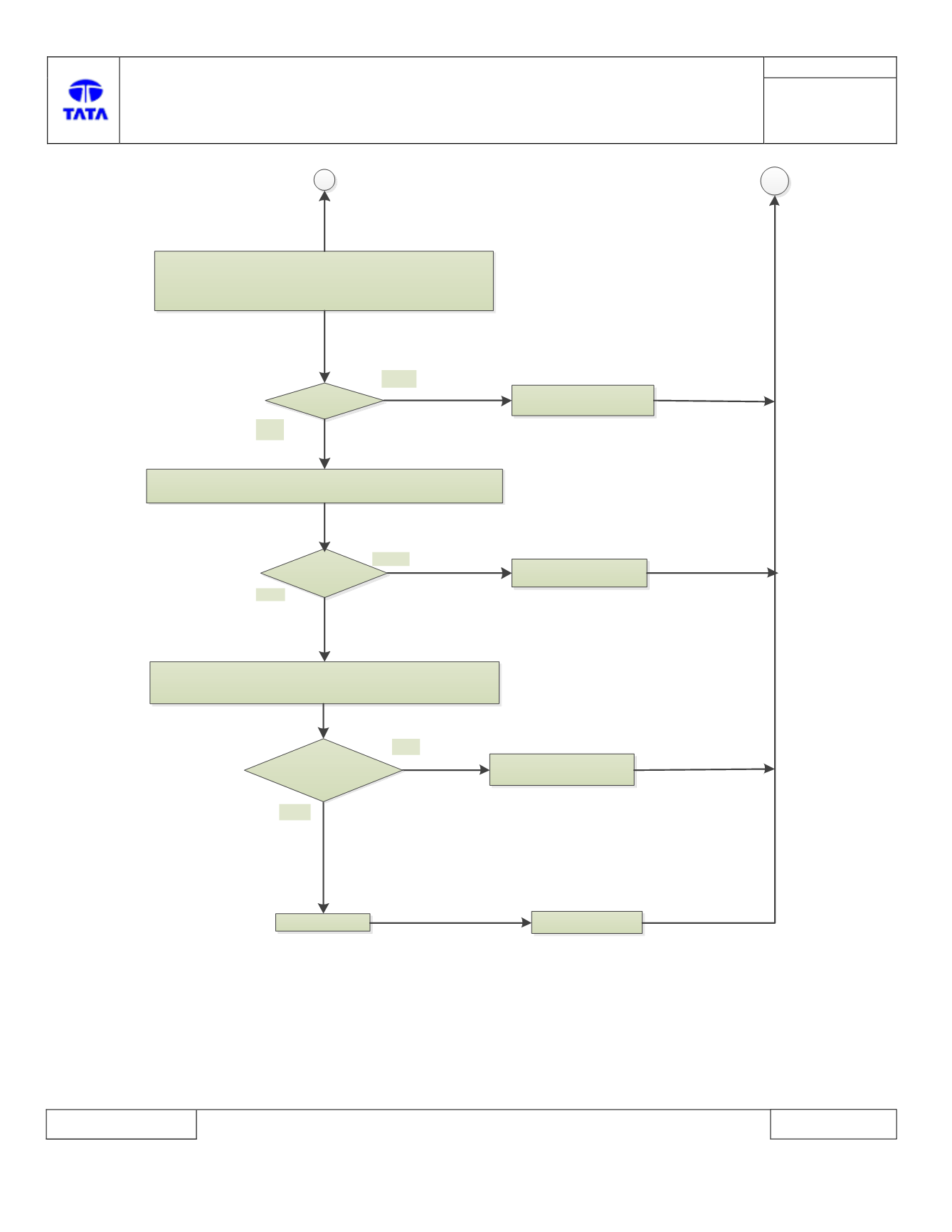

1.Remove Front wiper motor mating connector

2. Check continuity between BCM harness side connector pin

[C1-

18]

and Front wiper Park position contact at front wiper motor

mating connector

Open Circuit?

Perform the visual check of connectors for pin bend or damaged etc.

Is connector

faulty?

Check continuity at Front wiper park position contact with b

attery

BCM ECU Faulty

Correct wiring harness

(Open Circuit)

YES

Correct connector fault

(Terminal Bend)

YES

Replace BCM ECU

YES

Park input fault. Replace

Front wiper motor

Continuity found?
