HARRIER BOOK 2

Vehicle Platform: Tiago,Tigor & Osprey

ECU Name: Hella Body Control Module (BCM)

DTC Troubleshooting Data

Version: 2.0

Date: 22-10-2018

Author: Parag K

Page: 605 of 737

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

DTC’s confirmation:-

After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.

a) Operate switches manually and check, DTC B223E – 92 is not returned when rear wiper is operated.

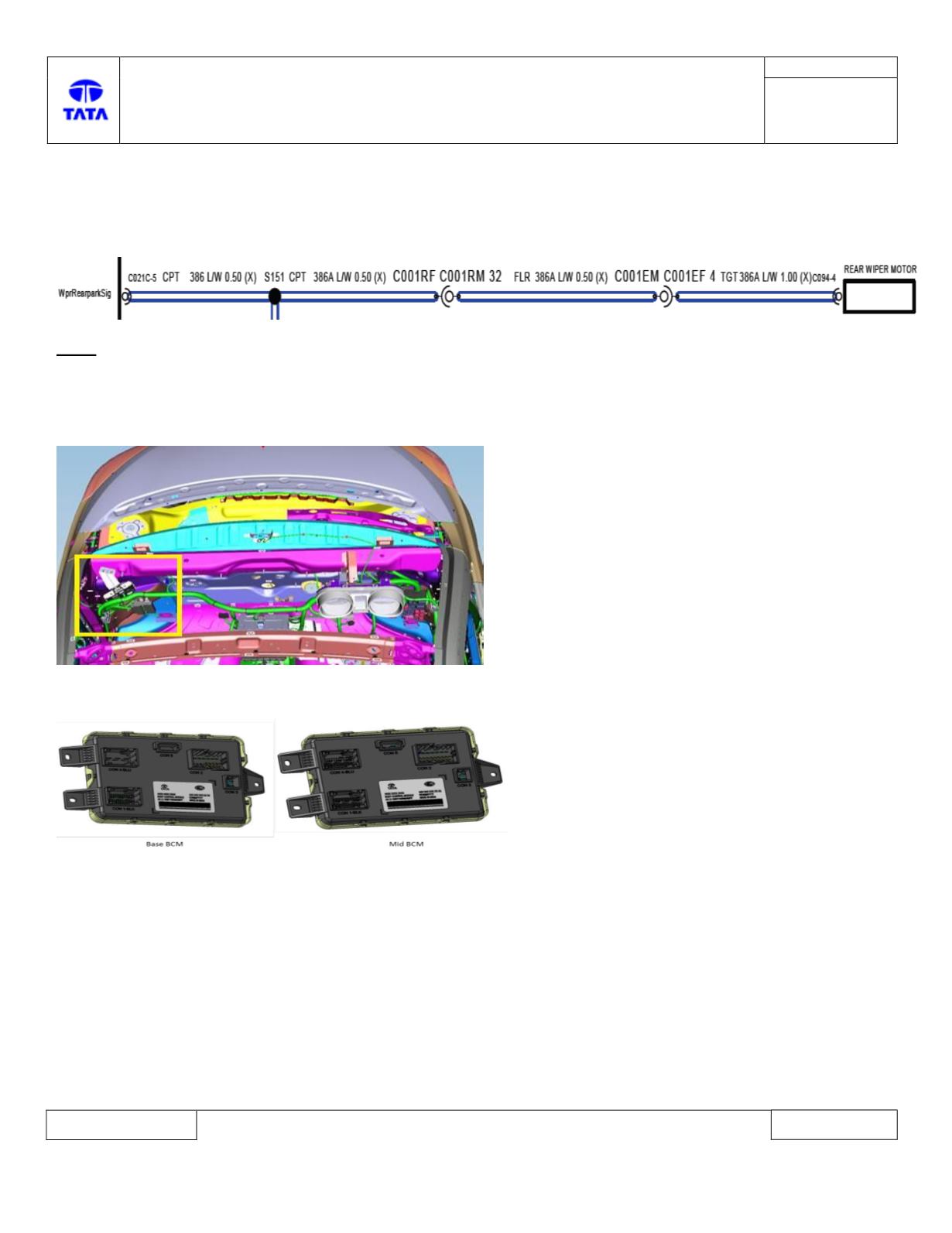

Circuit Schematic Diagram:-

Note:

For detailed information please refer latest BCM wiring harness schematic.

Component Location & Image:-
