DTC’s confirmation:
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
1.
Switch Ignition ON.
2.
Run Input Switch Test routine, operate switches manually and check DTC
B1306 – 11 is not returned with the
Routine results.

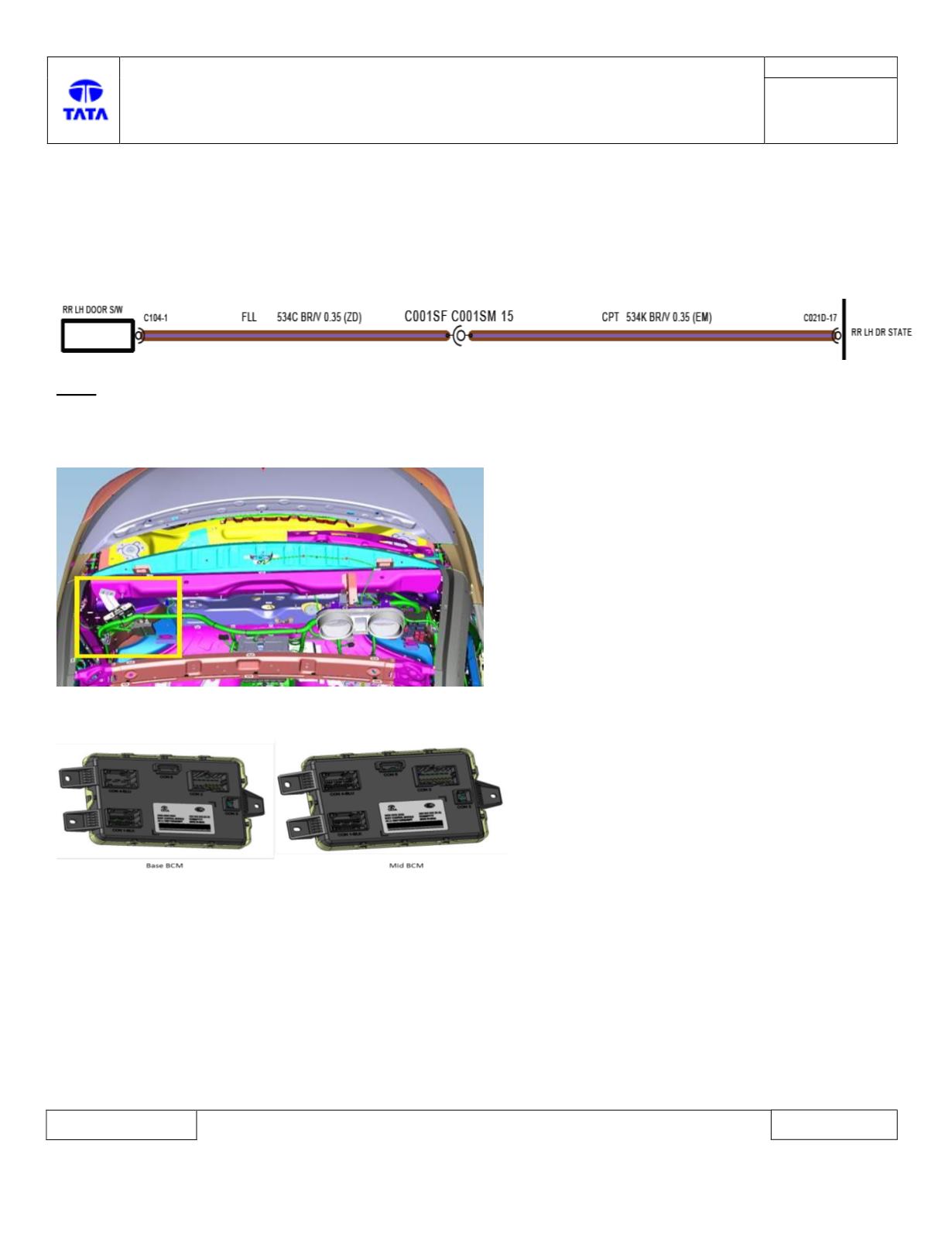

Circuit Schematic Diagram:
Note:
For detailed information please refer latest BCM wiring harness schematic.
Component Location & Image:-
