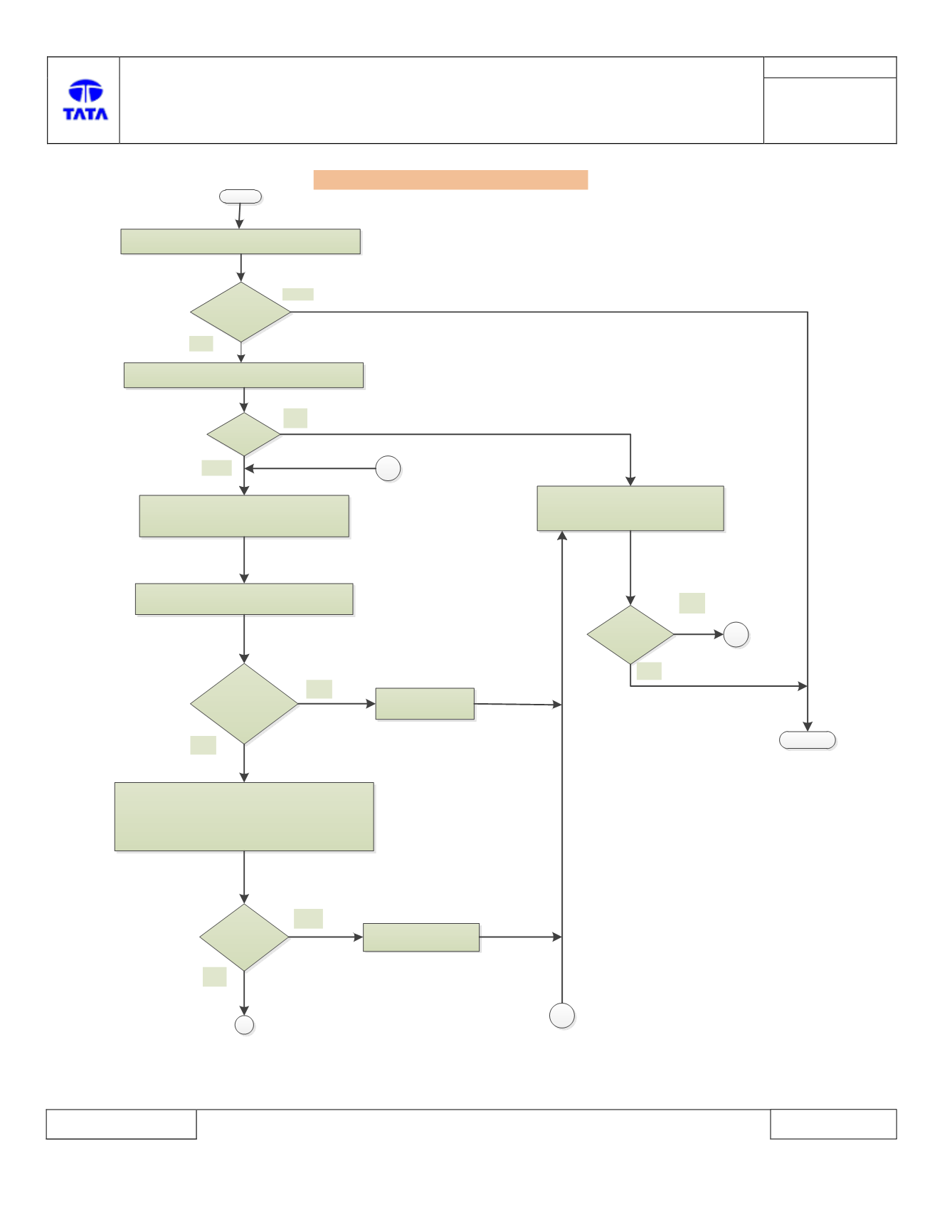

B2229 – 11: Left turn Indicator Lamp circuit –Short To
Ground
START
Connect Diagnostic tool and check for DTCs
Is DTC B2229-11
present?
STOP
NO
Check DTC present is Permanent or Historic
Is History?
1. Clear the DTC from memory
2. Turn the IGN to OFF
3. Start the IGN
Is DTC B2229-
11 present?
YES
NO
YES
YES
NO
Disconnect vehicle battery connection.
(Please follow the safety guidelines)
Check BCM and Left TurnIndicator lamp
connectors for terminal backout
Are connectors
loose?
Reconnect
connectors firmly
YES
1.Remove BCM side wiring harness Connector.
2.Perform visual check of connectors for pins bent or
damaged etc.
Is connector
faulty?
Correct connector fault
(Terminals Bend)
YES
NO
NO
A
B
C
C
