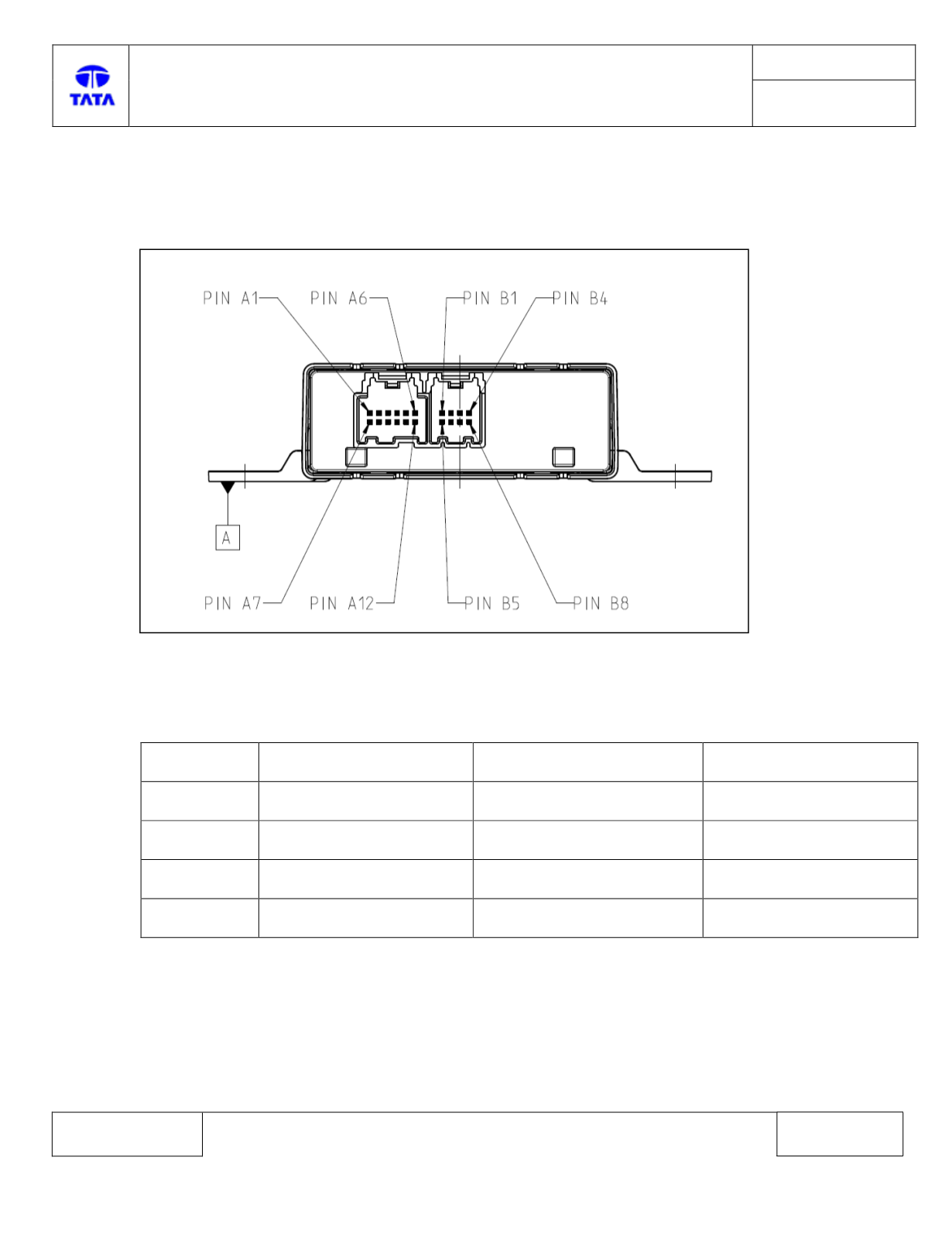

PACM ECU side connector diagram
PACM ECU pin details:-
Connector
Chamber
Description
Pin
P2
A
CAN_H
9
P2
A
CAN_L
10
P2
A
Ignition input
7
P2
A
Battery ground
12
