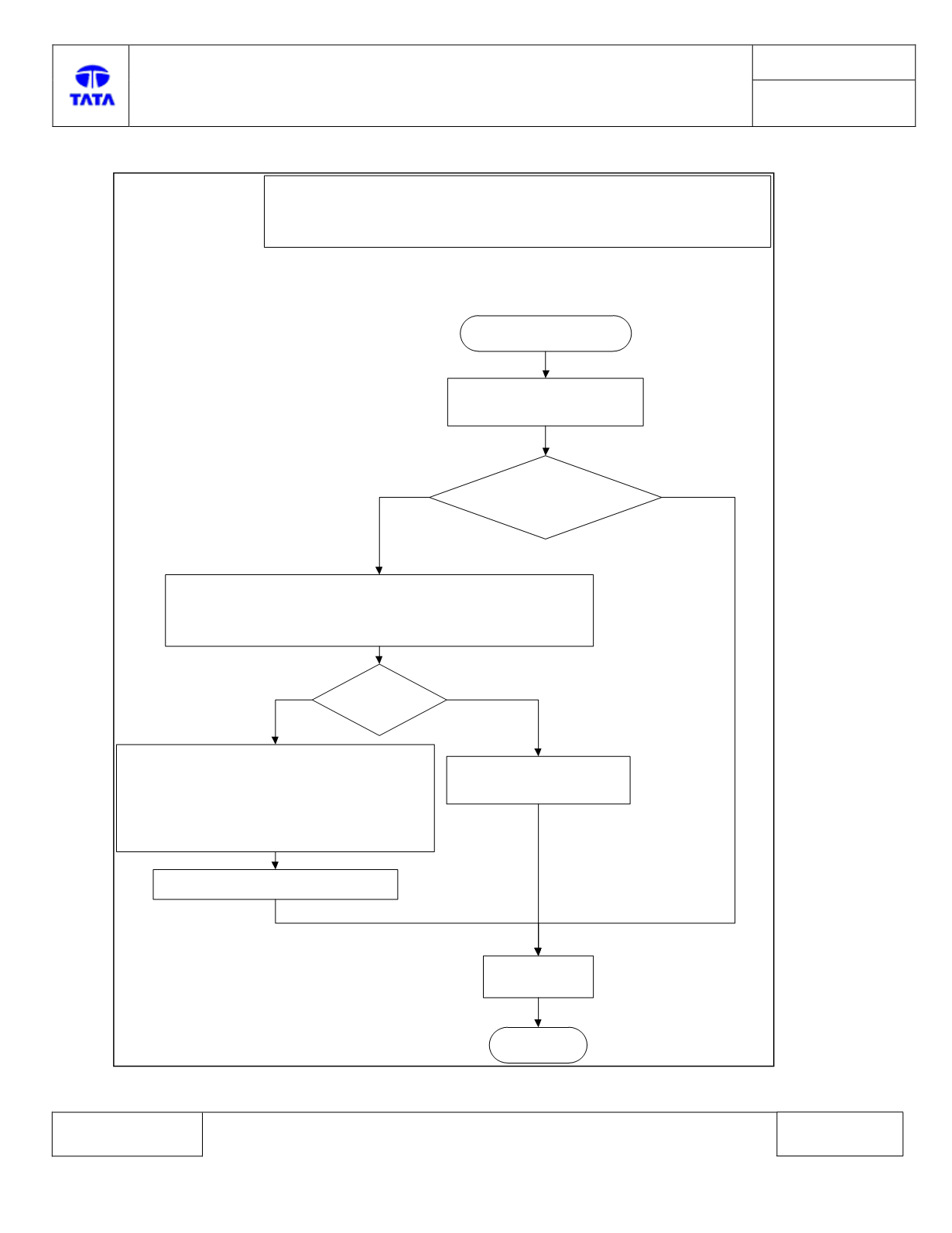

Start
Read IVN DTCs in Silver Box
If MTO logged against
PACM in current state?
No (In history)
Check continuity between Silver Box CAN_H (Connector C1 pin no. 2
) to PACM CAN_H(Connector P2, A Chamber pin no. 9) and Silver
Box CAN_L (Connector C1 pin no. 5 ) to PACM CAN_L(Connector
P2, A Chamber pin no. 10) in vehicle wiring side connector.
Is continuity
there?
Repair the wiring harness
Clear DTC
Stop
Check Ignition (Connector P2, A Chamber pin no.
7) and Ground (Connector P2, A Chamber pin no.
12) of PACM is properly connected or not. Also
check fuse(10 Amp, F20) blown.
Do necessary repair in the harness
Yes
Yes
No
U0159-08
Lost Communication with Parking Assist Control
Module "A" - Bus Signal / Message Failures
