STEERING
26

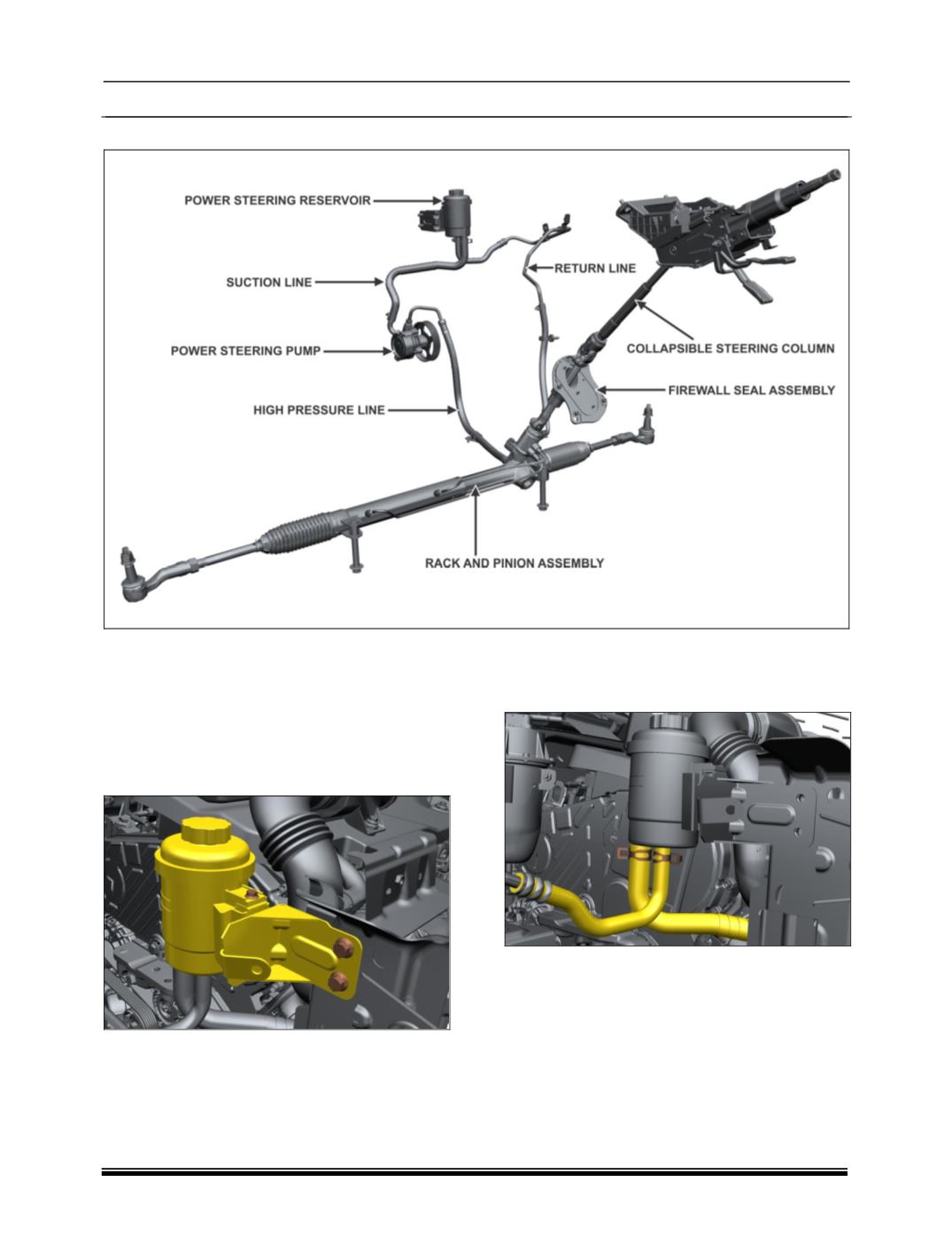

iii. STEERING RESERVOIR AND POWER STEERING PUMP :
A. Steering Reservoir :
1. Drain the power steering oil. (For procedure,
refer oil replacement procedure.)
2. Loosen and remove the mounting bolt and
take out the reservoir, then remove mounting
bolts of the bracket holding the reservoir with
the BIW if required.
3. Remove the spring band clamp and
disconnect the suction line and the return line
from the reservoir end.
4. Take out the reservoir assembly.
NOTE:
Plug holes of both reservoir and lines to avoid
entrance of dirt and contamination.
FITMENT:
For fitment, follow reverse procedure of removal.
