ENGINE 1.3 QUADRAJET (75PS)
41

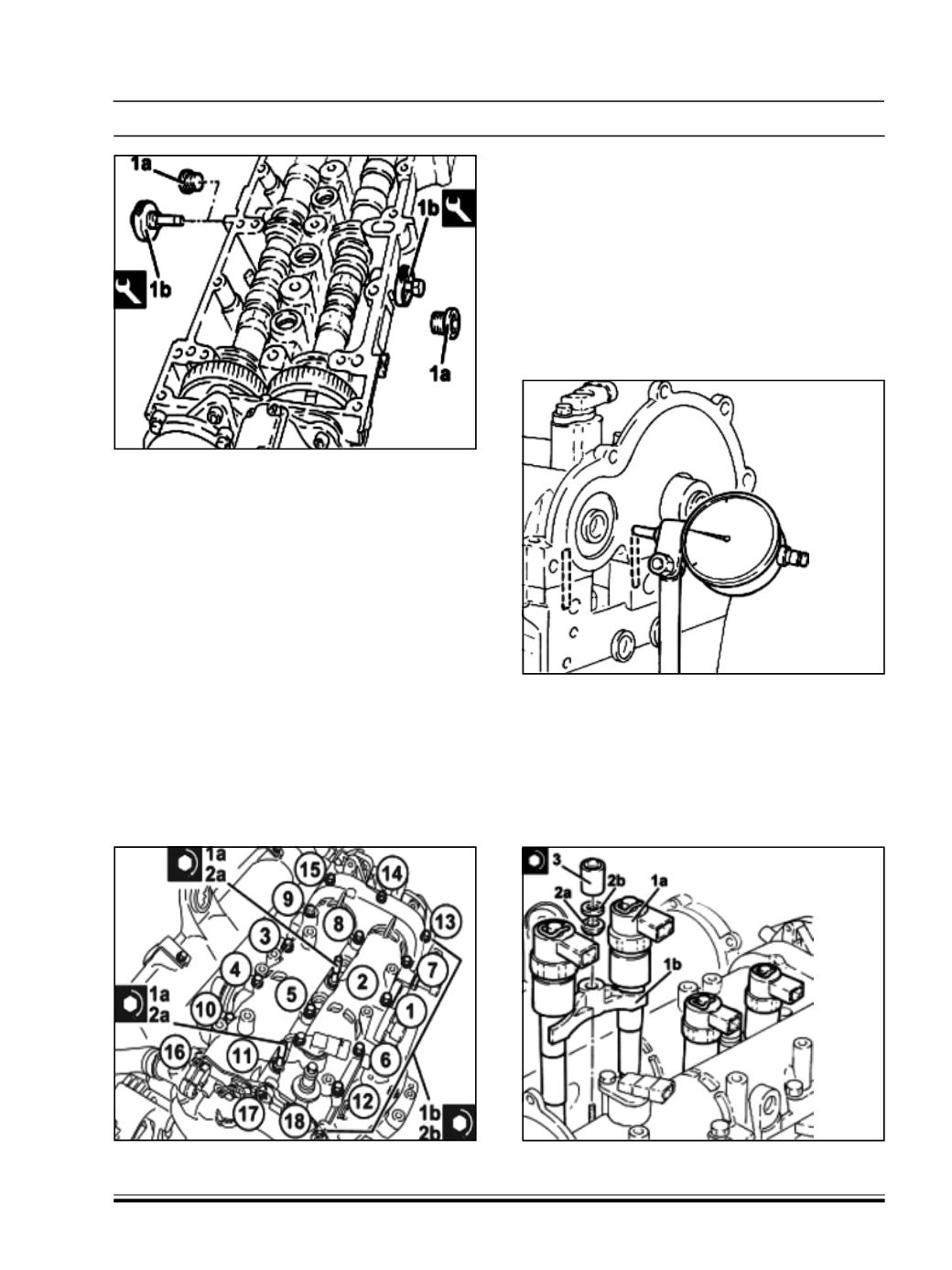

11. If not already carried out during cylinder head
overhaul, remove plugs (1a) and fit camshaf t
timing adjustment tools (1b) 287158900655
(Template) to the cylinder head extension.
12. Fit the tools and position with their millings
horizontal. Ensure they fit into the seats on the
camshafts.
13. Remove the int ake camshaft timing tool and
tighten the plug.
14. Place the camshaft housing centering bushes
on the cylinder head.
NOTE
Q
Before fitting the locating bushes, check that the
height is 13 mm.
15. Place the camshaf t housing complete with
gasket in position.
16. Tighten the single camshaf t housing M8 fixing
bolts (1a) to a pre-torque of 1.5 Kg-m and M7
(1b) to a pre-torque of 1.2 Kg-m .
17. Tighten the bolts (2a) to a torque of 2.5 Kg-m
and (2b) to a torque of 1.8 Kg-m securing the
single camshaft housing.
NOTE
Q
Follow the order as shown in the diagram for the
tightening sequence.
18. Check the misalignment between the camshaft
housing - cylinder head. Only the camshaf t
housing can protrude and not the cylinder head.
NOTE
Q
The permissible protrusion of the camshaft
housing from the cylinder head is 0.1mm
