ENGINE 1.3 QUADRAJET (75PS)
15

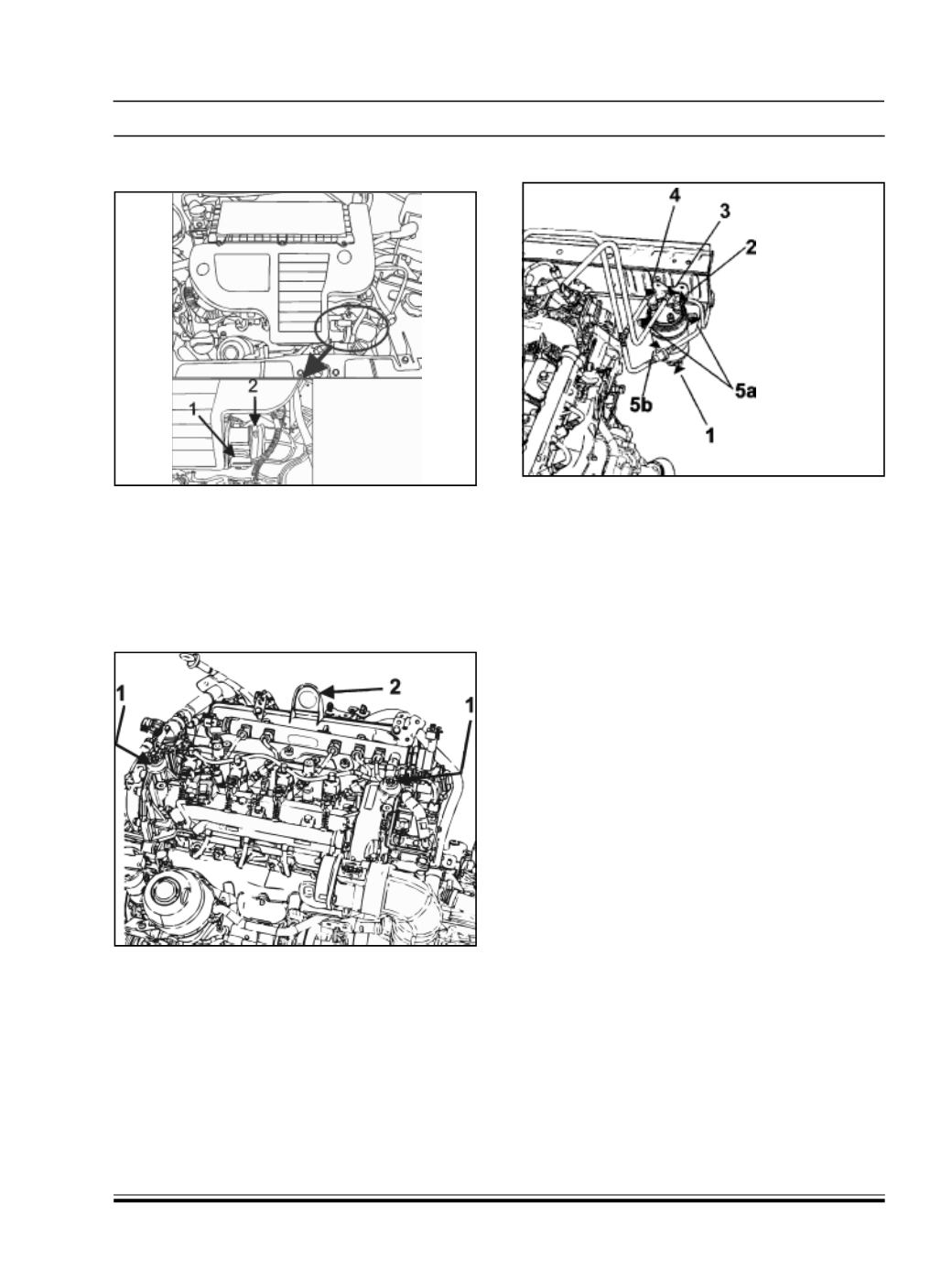

D. AIR FILTERASSY – REMOVAL
1. Disconnect theAir flow sensor (1) and remove the
hose by loosening the hose clamp (2).
2. Lift the air filter assembly from front and move it
forward to remove it from the rear locater.
REINSTALLATION
1. Align the Air filter Assembly at the rear locator (2).
2. Press the Air filter Assembly at the front locator
pins (1) to lock it.
3. Fix the hose and tighten the clamp.
4. Connect the Air Flow Sensor.
E. FUEL FILTER – REPLACE
1. Disconnect the fuel sediment connector and
unscrew the water sensor(1)
2. Disconnect the Delivery line (2) coming from tank.
3. Disconnect the High pressure delivery line (3) from
filter to pump.
4. Disconnect the return line (4) from rail to filter.
5. Loosen the nuts (5a) and remove the fuel filter
assembly (5b).
6. Replace the fuel filter with a new one and follow
the reverse procedure for assembly.
7. Replace the water sensor and connect the
Connector.
DISCHARGING WATER FROM FUEL FILTER.
Water needs to be drained every time the water in
filter indicator turns ON to indicate the presence of
water in the filter. This usually occurs when the water
collected in the filter reaches a pre-determined
volume.
