ZEST/BOLT

ENGINE 1.3 QUADRAJET (75PS)

B. ENGINE OIL FILTER CARTRIDGE

REPLACEMENT.

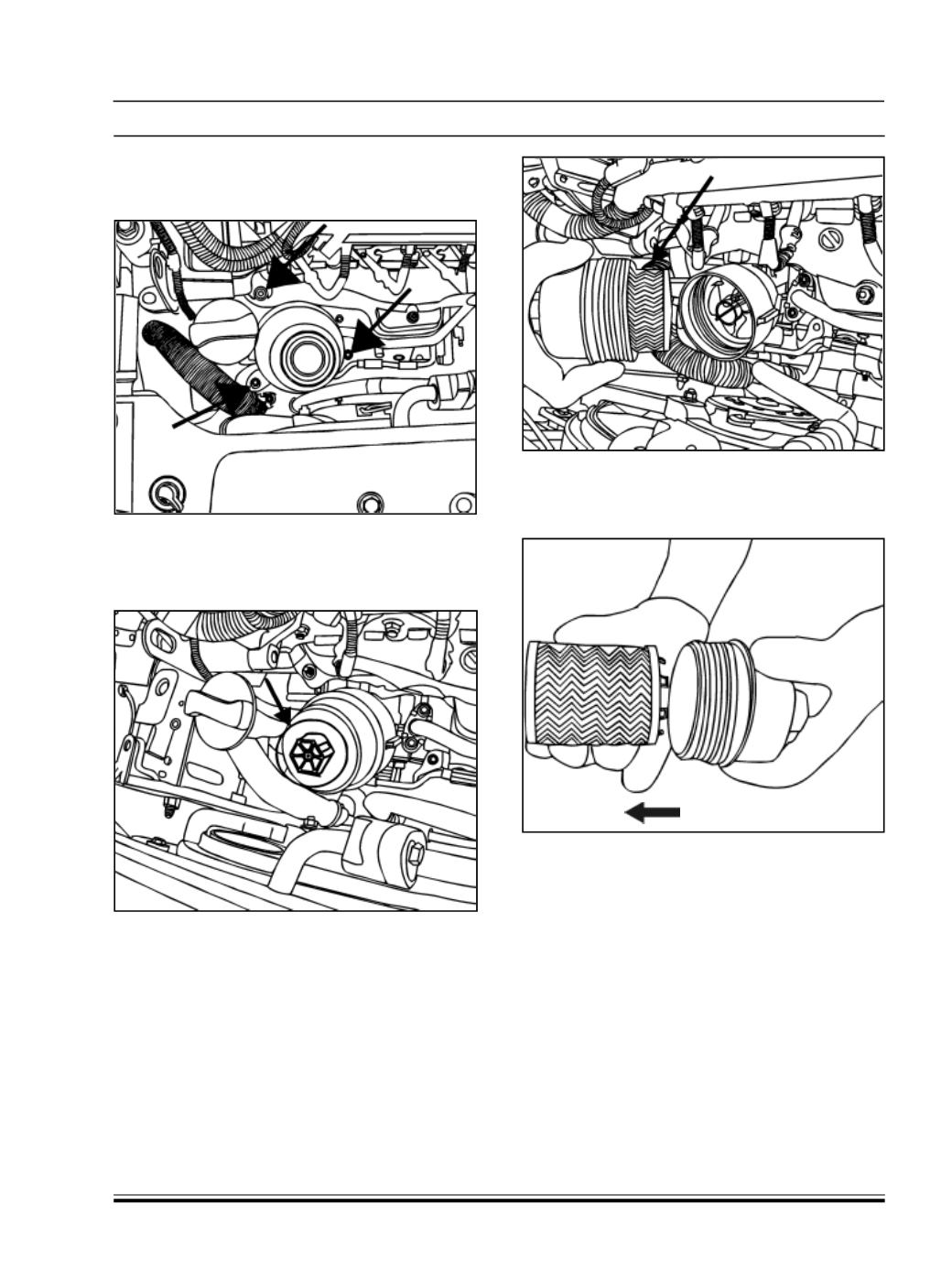

1. Unscrew the two Torx (T-30) screws and the

hexagonal nut of the oil filter cover and remove

the oil filter cover.

2. Remove the oil filter housing by unscrewing it by

placing a suitable box spanner on the hexagonal

protrusion on top of it.

3. Since the oil filter cartridge is snapped to the

housing it will also come along with the oil filter

housing.

4. Hold the oil filter housing firmly and pull out the

cartridge by giving a slight anti clockwise rotation.

NOTE

Before replacing the oil filter cartridge, wipe clean the

old oil from inside of the oil filter housing and smear

some fresh engine oil to it.

5. While replacing the oil filter cartridge, snap the

new cartridge into the oil filter housing.

Place the oil filter housing along with the oil filter

cartridge properly and hand tighten the same and

then tighten it to a torque of 25 N-m using box

spanner.

7. Install the oil filter cover and tighten the two Torx

screws and the hexagonal nut.
