AIR CONDITIONING
13

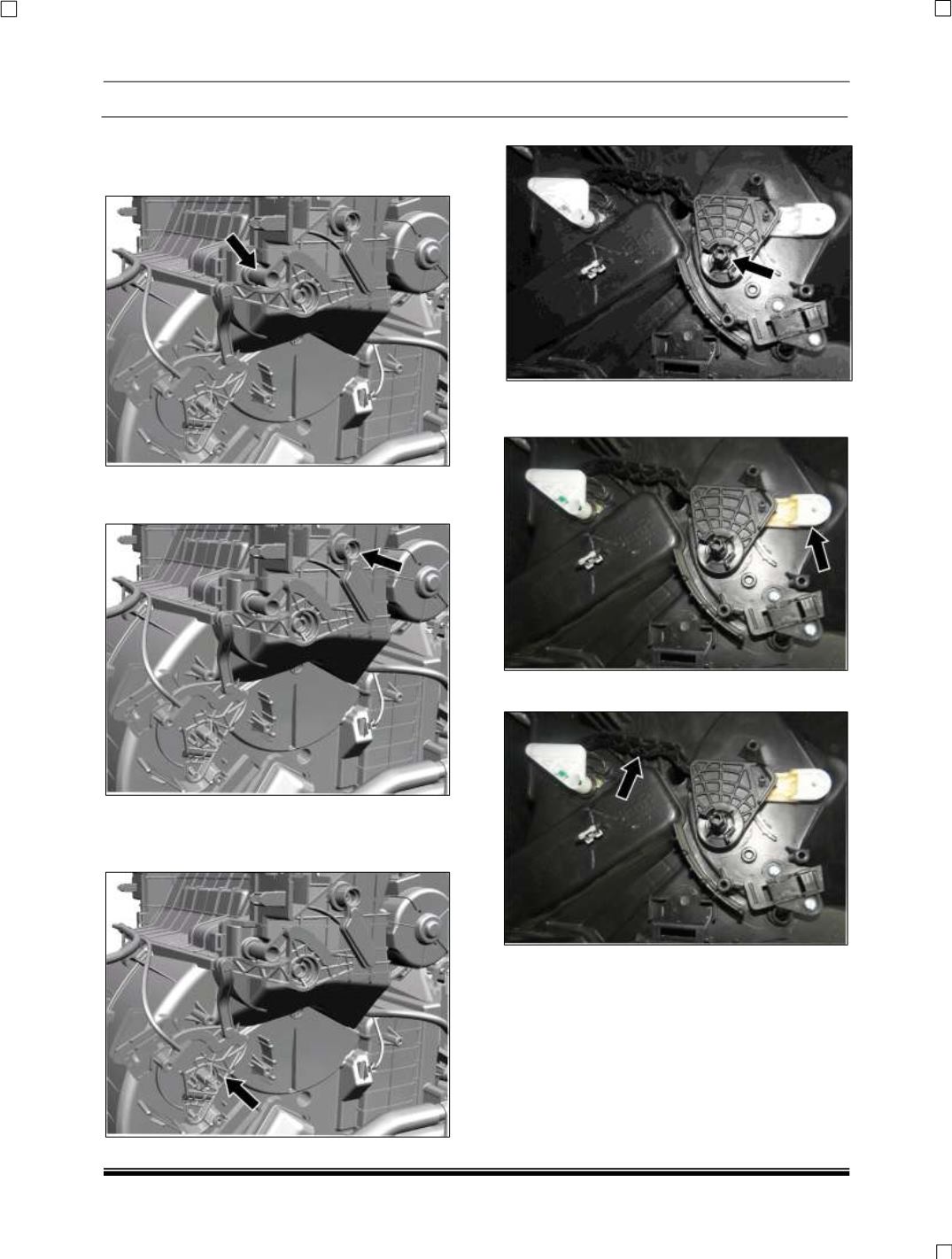

11.5.7 SERVICING OF KINEMATIC
1. Pull foot lever so that it will be detached from
locking in Foot flap.
2. Pull Defrost lever so that it will be detached
from locking in Defrost actuating lever.
3. Pull and hold primary temperature cam which
is also snapped to connecting lever from
bottom side.
4. Pull secondary temperature flap cam.
5. Detach connecting lever from primary
temperature cam.
6. Pull primary temperature flap lever.
