AIR CONDITIONING
11

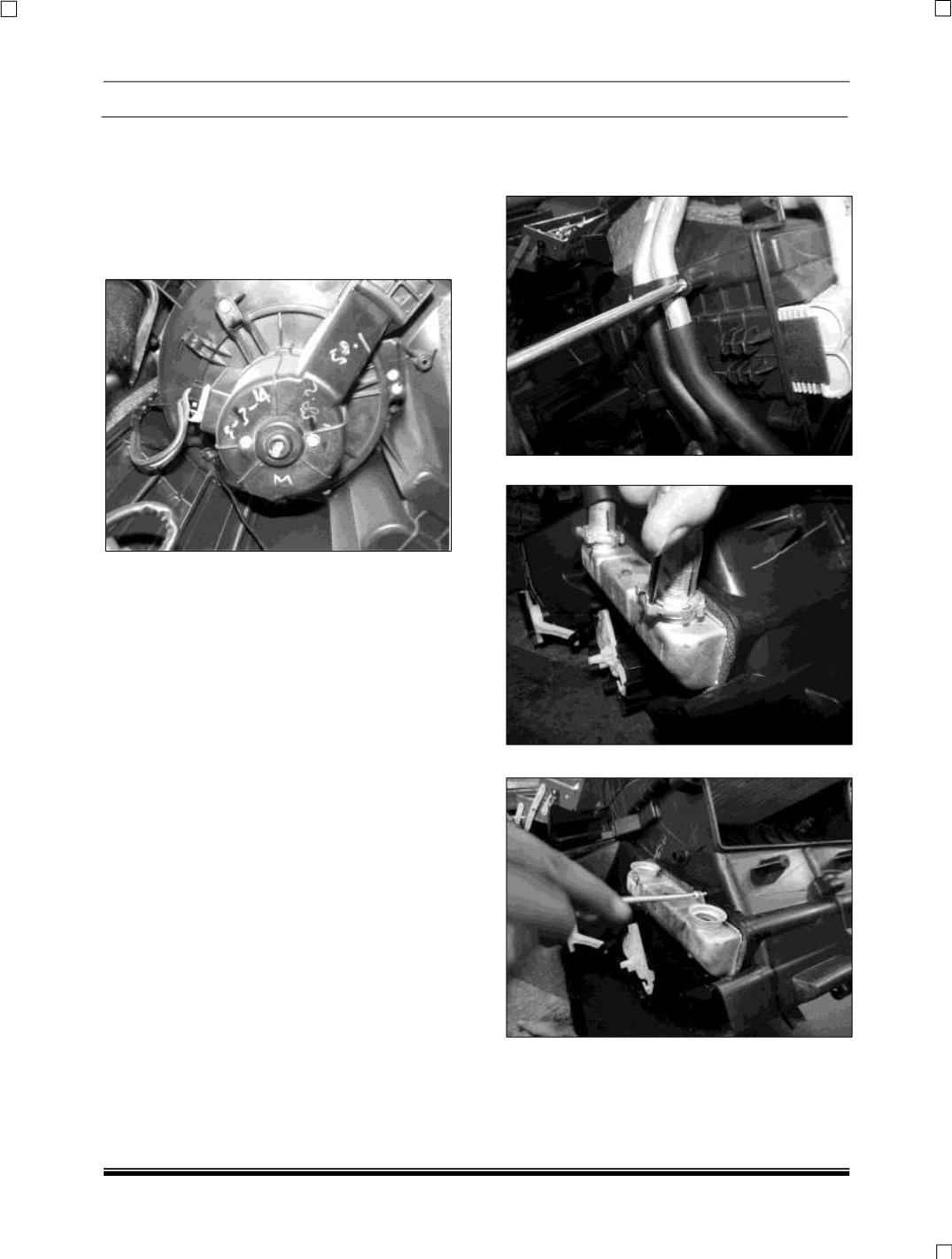

11.5.4 SERVICING OF BLOWER ASSEMBLY
1. Remove wiring harness connector. (Fig 6)
2. Unscrew the blower assembly mounting
screws.
3. By slightly pulling remove the lock.
4. Rotate Blower assembly in anticlockwise
direction.
5. Remove the assembly.
11.5.5 SERVICING OF HEATER ASSEMBLY
1. Remove screws to make the pipes loose so
that Heater core can be separated from pipes.
2. Remove the omega clips.
3. Remove the screw with the washer.
4. Remove the Heater
