1.5L REVOTORQ ENGINE
179

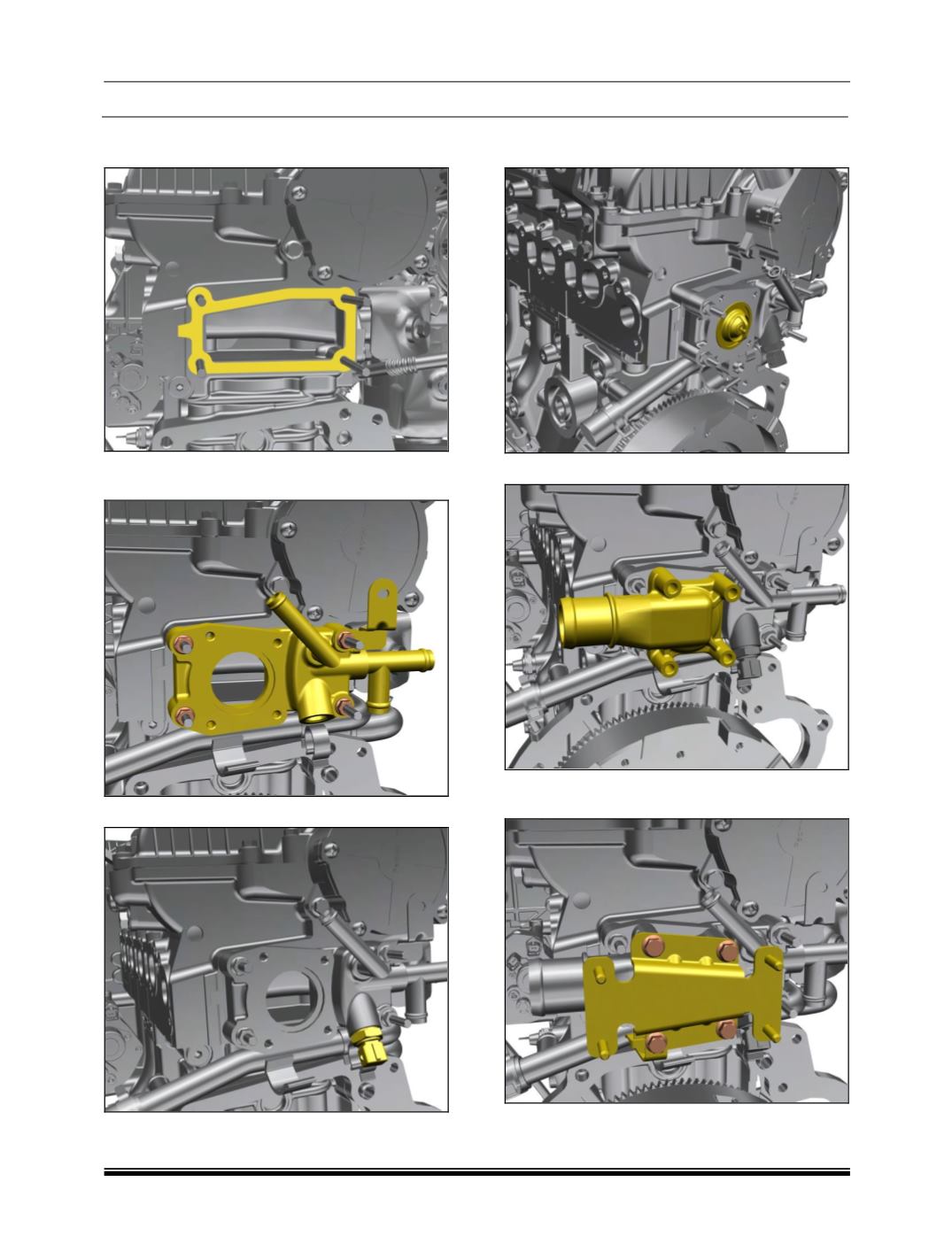

13.Place the gasket for water box. Make sure to
use new gasket when installing.
14.Install the water box assembly along with
support bracket.
15.Fit the temperature sensor on the water box.
16.Install the thermostat assembly into the water
box.
17.Align the thermostat cover over the water box.
18.Install the EVRV bracket to fit the thermostat
cover along with it.
