1.5L REVOTORQ ENGINE
176

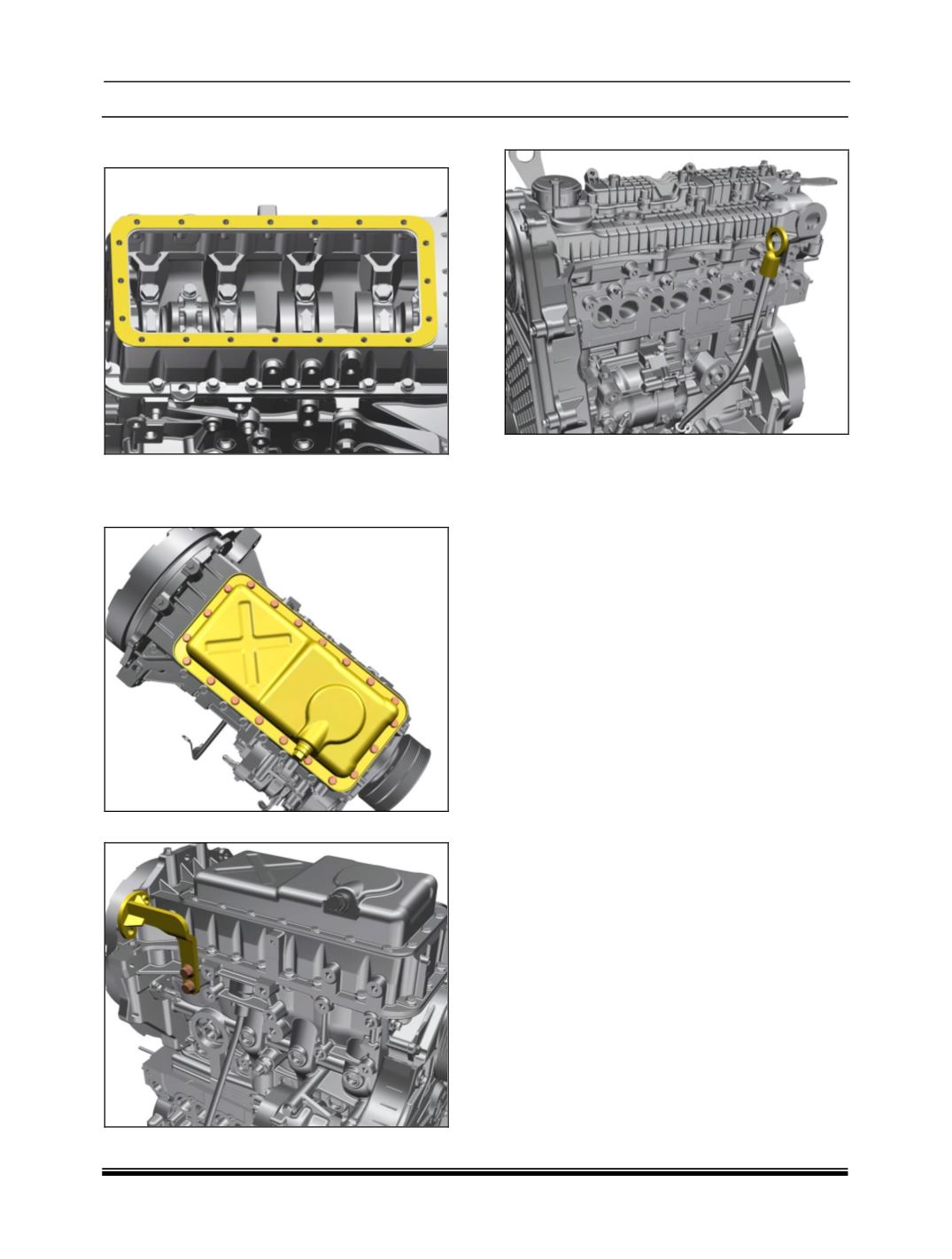

4. Place the gasket for lower oil sump on upper
oil sump as shown.
5. Apply the sealant (LOCTITE 5900) on lower
oil sump.
6. Install the lower oil sump.
7. Fit the stiffener bracket for the powertrain.
8. Install the oil dipstick into the dipstick tube.
