1.5L REVOTORQ ENGINE
184

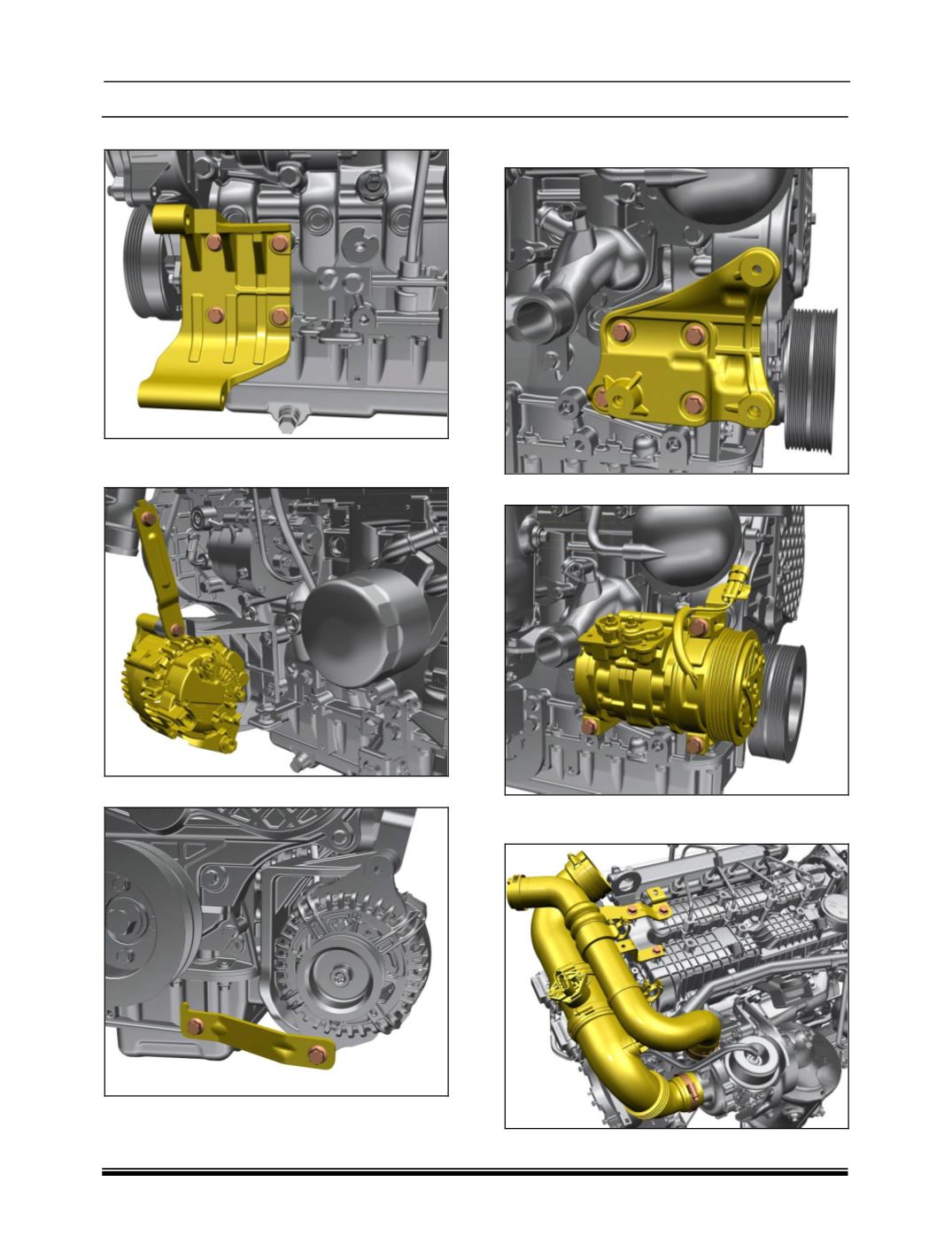

4. Fit the alternator support bracket.
5. Install the alternator assembly along with
support using mounting fasteners.
6. Fit the alternator support bracket.
7. Fit the compressor support bracket using its
mounting fasteners.
8. Install the compressor assembly.
9. Connect the hoses of the turbocharger and
mount its support brackets on the head cover.
