1.5L REVOTORQ ENGINE
100

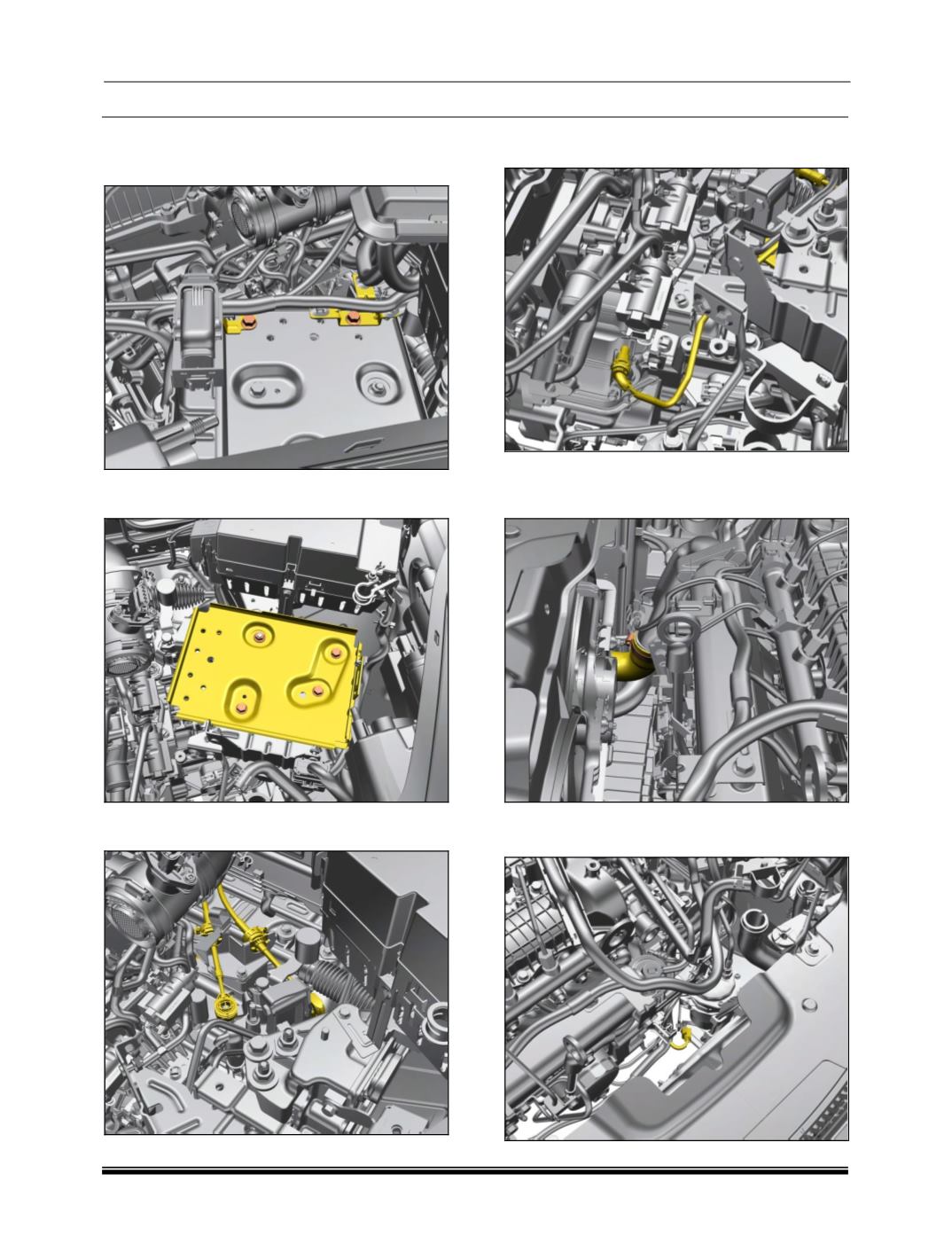

23. Loosen and remove the mounting bolt of the
wiring harness support brackets mounted on
the battery tray.
24. Remove 3 mounting bolts and one mounting
nut of the battery tray to take it out.
25. Disconnect the gear shift cable and selector
cable from the transaxle.
26. Disconnect the hydraulic clutch high pressure
line from the transaxle slave cylinder.
27. Loosen and remove the clamp on the hose
connecting intercooler to the intake manifold
pipe.
28. Disconnect the electrical connection of the
fuel filter.
