1.5L REVOTORQ ENGINE
99

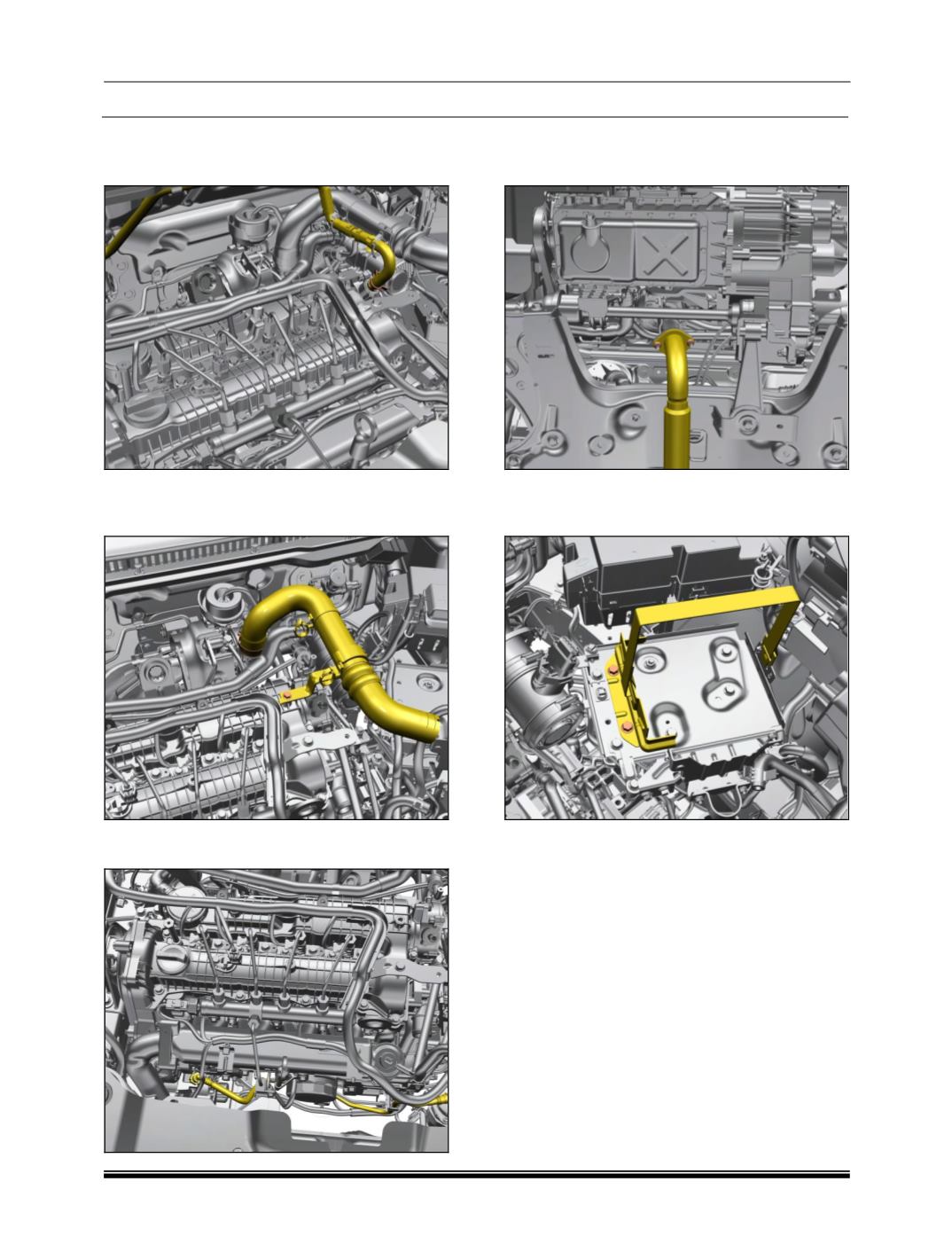

18. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
19. Loosen the clamp and remove the mounting
bolt of the support bracket to take out the TC
outlet hose.
20. Disconnect the fuel supply connection
between fuel filter and the HP pump.
21. Remove the mounting bolts of the
intermediate exhaust pipe and disconnect the
pipe.
22. Remove the mounting bolt of the battery belt
support bracket and remove the belt
assembly along with the bracket.
