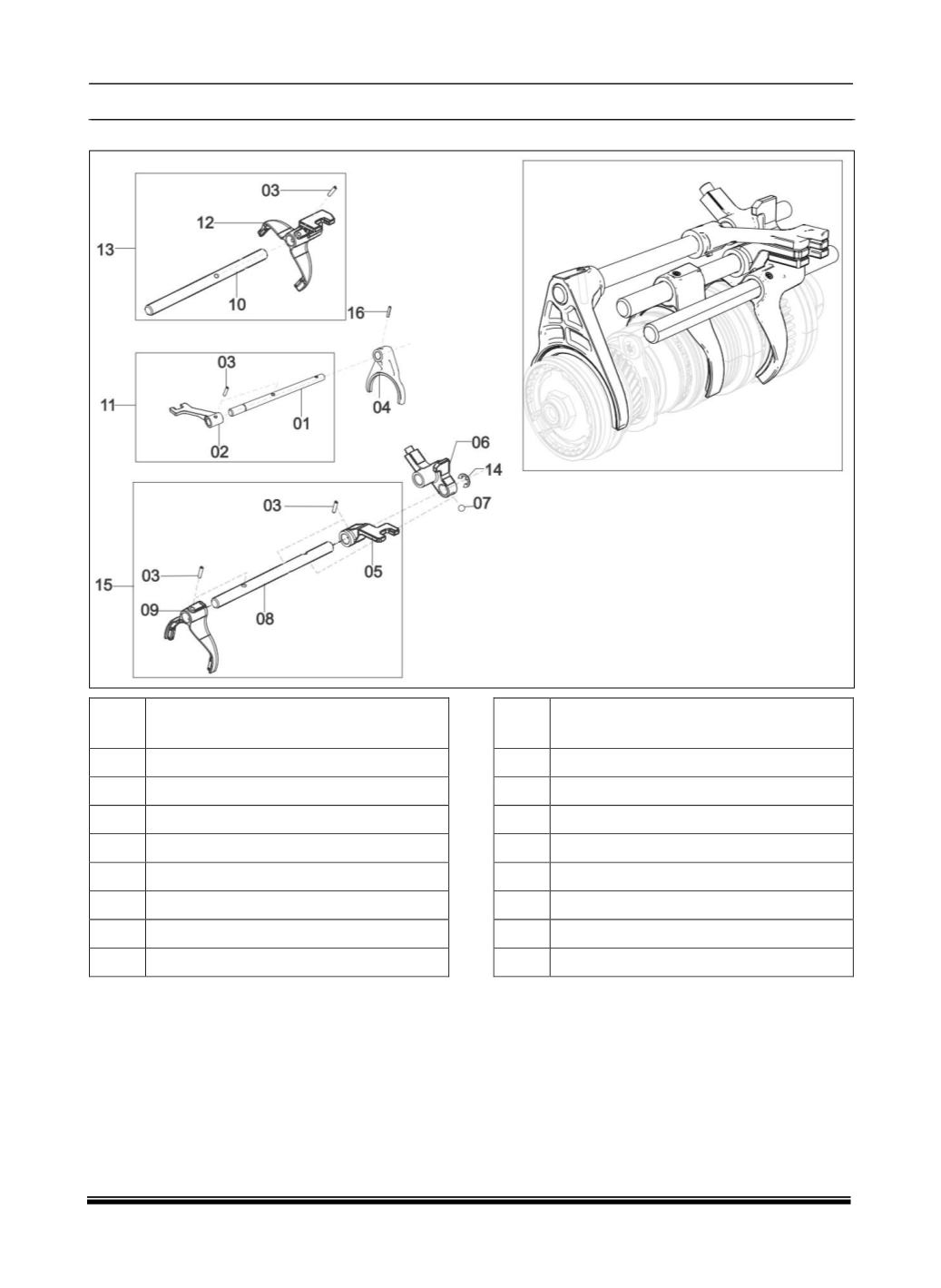

EXPLODED VIEW OF LAY SHAFT AND INPUT SHAFT:
SR.
NO.
DESCRIPTION
01
SHIFTER SHAFT (5/R SPEED)
02
DOG (5/R SPEED)
03
ASSY DOWEL SLEEVE
04
SHIFTER FORK;5/R SPEED
05
DOG (3/4 SPEED)
06
FINGER;SWING LEVER RI
07
BALL 8 DIA GRADE-20 IS2898
08
SHIFTER SHAFT (3/4 SPEED)
SR.
NO.
DESCRIPTION
09
SHIFTER FORK 3/4
10
SHIFTER SHAFT (1/2 SPEED)
11
SUB.ASSY SHIFTER SHAFT (5/REV)
12
INTEGRAL FORK ASSY. (1/2 SPEED)
13
SHIFTER SHAFT SUB ASSY;1/2
14
CIRCLIP E 12X1.3 IS3075 PT3 SS8400
15
SUB. ASSY SHIFTER SHAFT (3/4)
16
SPIRAL PIN
