1.4.3. DASHBOARD SKIN

REMOVAL

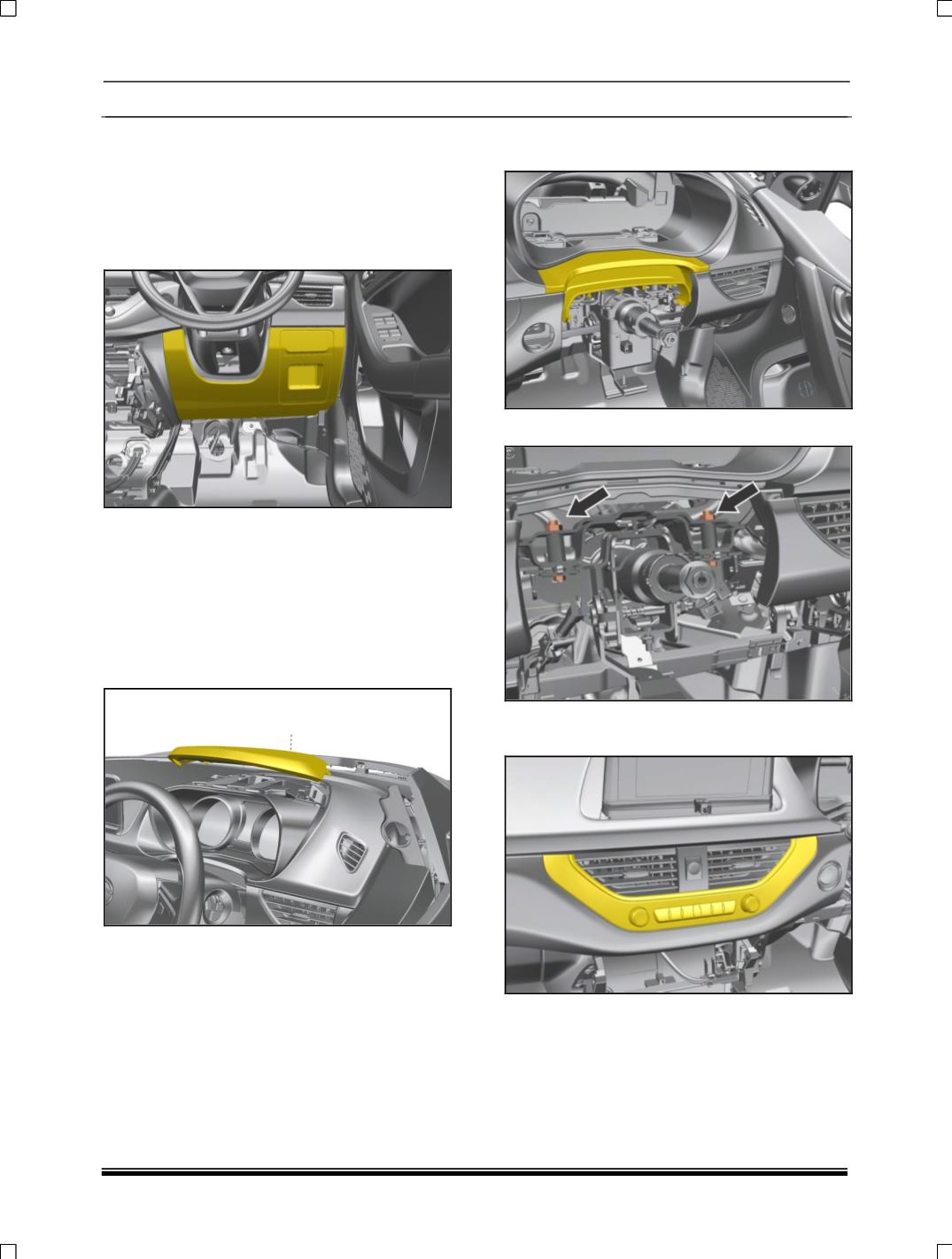

1. Remove steering wheel with Driver air bag (if

applicable) (For procedure refer steering wheel

removal process in steering section.)

2. Pull out Driver lower panel.

3. Remove nacelle Assembly. (For removal refer

steering column removal process in steering

section.)

4. Remove combination switch assembly and

ignition switch assembly (For procedure refers

combination switch and ignition switch removal

process in Electrical section.)

5. Pull out instrument cluster hood.

6. Remove instrument cluster. (For procedure

refer instrument cluster removal process in

Electrical section.)

7. Pull out gap hider fitted on the dashboard sub

assembly.

8. Remove two steering column mounting nuts.

9. Pull out center air vent assembly and

Disconnect the electrical connection
