NEXON

BODY

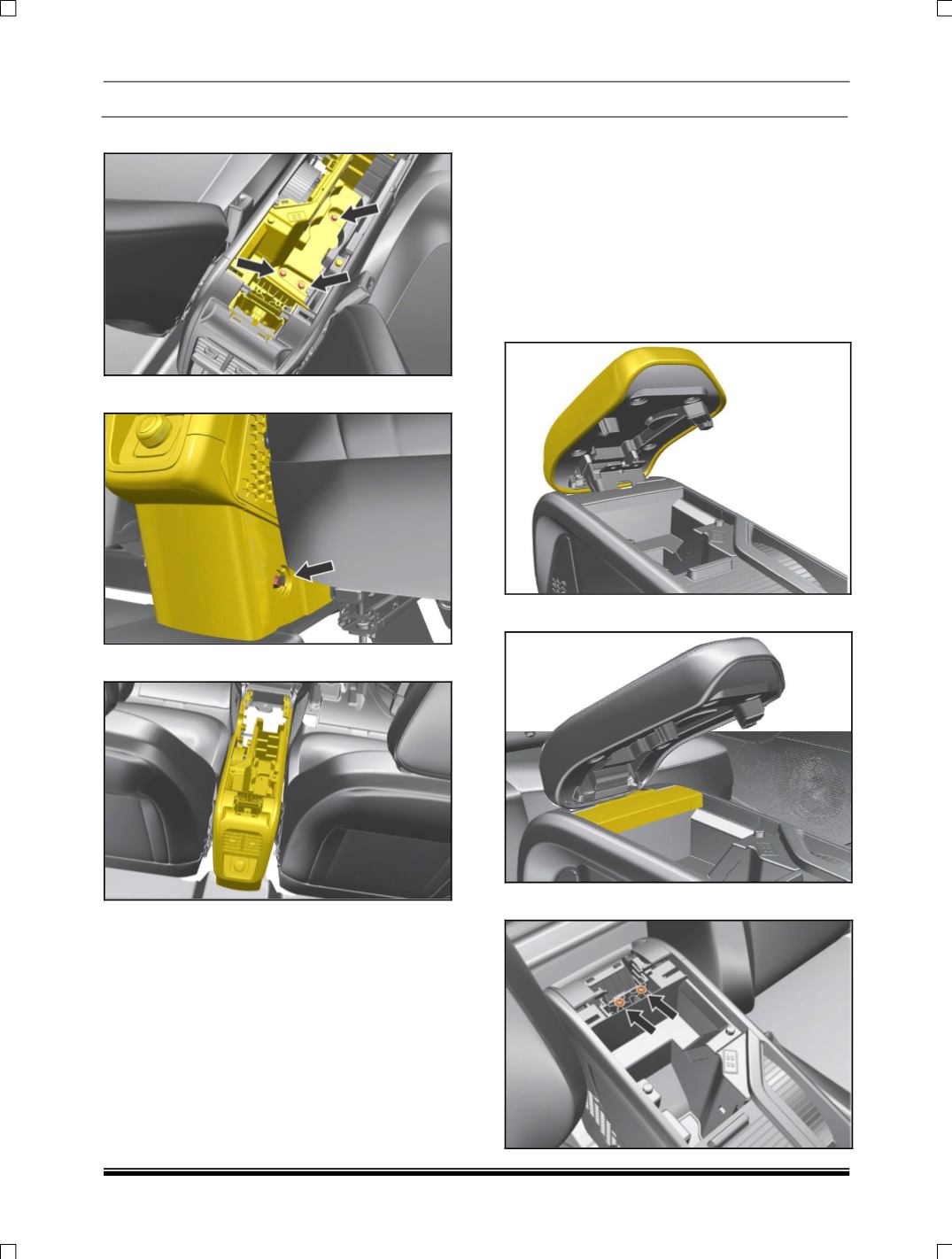

5. Remove three bolt of console.

6. Remove two mounting bolt (LH & RH).

7. Pull out floor console and take out

ARM REST

REMOVAL

NOTE

For ease of removal and fitment the hand brake

cable can be loosened from the rear end. (For the

hand brake adjustment, refer brake section.)

1. Remove the gear lever boot.

(For procedure

refer the gear lever boot removal process.)

2. Pull the Armrest up ward direction.

3. Remove Console Hinge cover.

4. Remove rear screw of central floor console.
