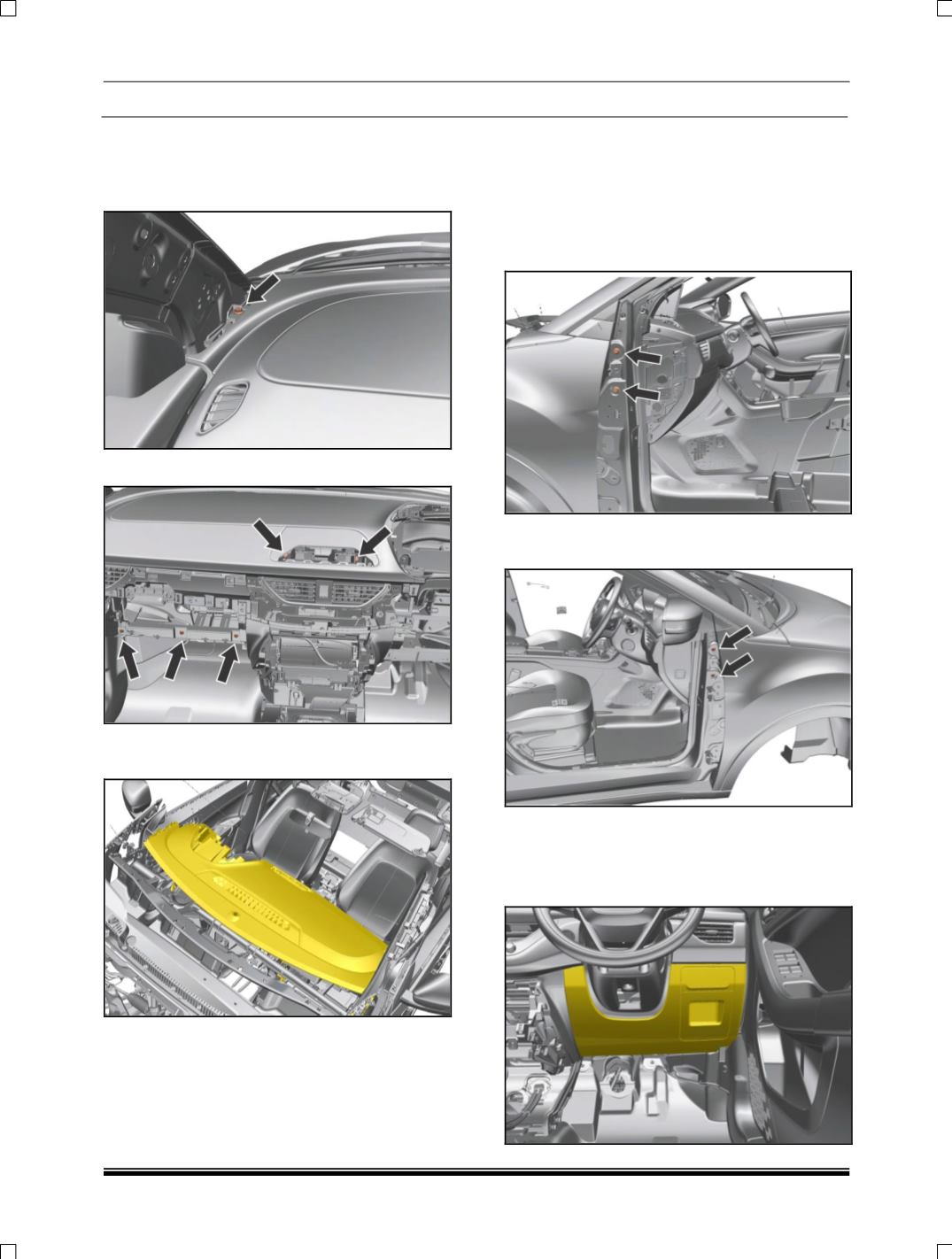

24. Remove A pillar Lower trim. (For procedure
refer A pillar trim removal process.)
25. Remove two mounting screw near A
pillar.(LH,RH)
26. Remove mounting bolts of dashboard
27. Disengage 3 locators located on BIW plenum
panel brackets.
28.Remove the dashboard, while removing
Dashboard carefully disengage HVAC system
behind the glove box.
FITMENT
For fitment follow reverse procedure of the
removal.
COCKPIT REMOVAL ( COMPLETE ASSY)
REMOVAL
1. Remove Door (For procedure refer Door
removal process in Door section.)
2. Remove two dashboard mounting bolts on LH
side as shown in figure.
3. Similarly remove two mounting bolts on RH
side.
4. Remove steering wheel with Driver air bag (if
applicable) (For procedure refer steering
wheel removal process in steering section.)
5. Pull out Driver lower panel.
