NEXON

1.5L REVOTORQ ENGINE

145

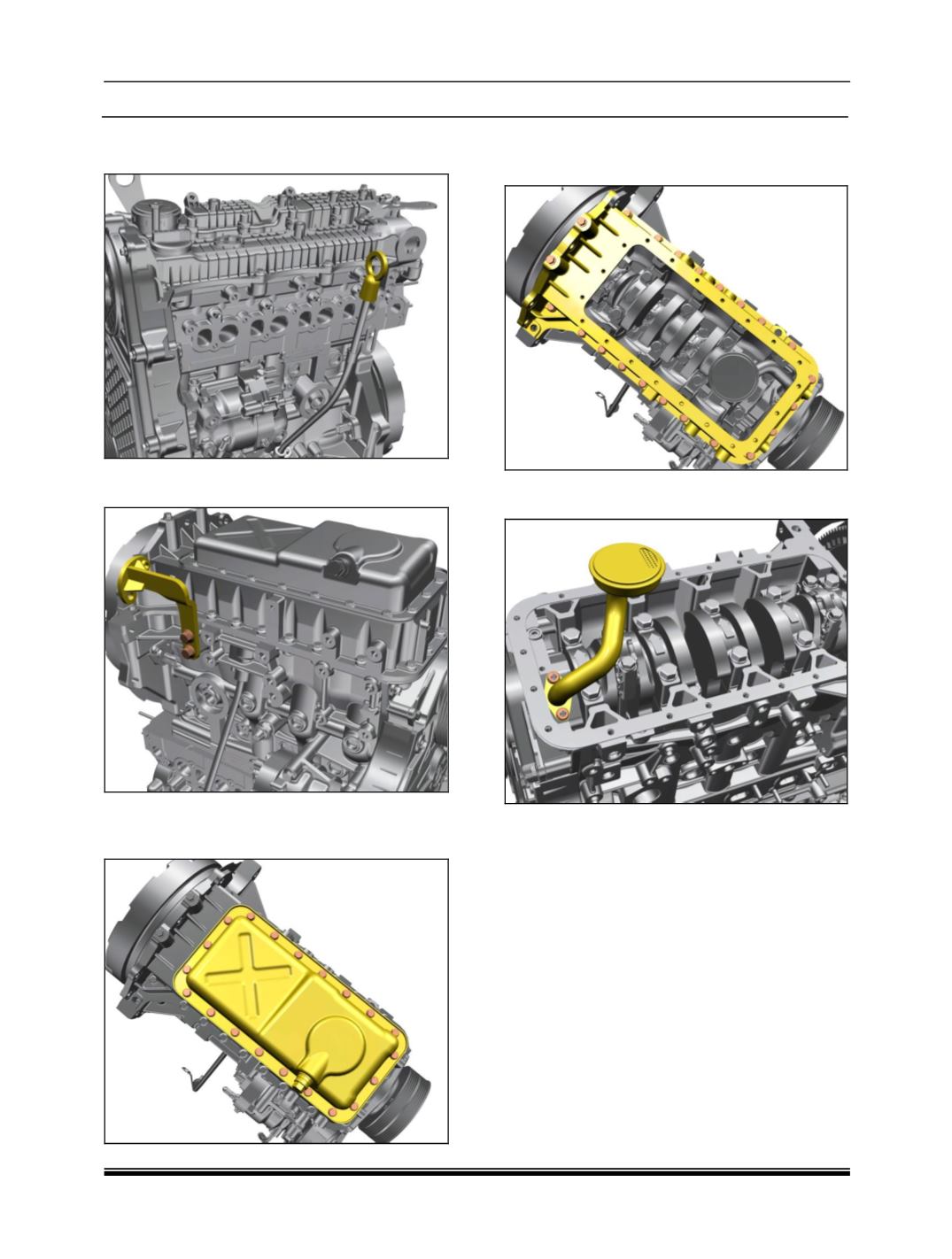

vi. REMOVAL OF OIL SUMP

1. Remove the oil dipstick from the dipstick tube.

2. Remove the stiffener bracket for the

powertrain.

3. Loosen and remove the lower oil sump bolts

using extended socket and take out the lower

oil sump.

4. Loosen and remove the bed plate bolts using

extended socket and take out the upper oil

sump.

5. Remove the mounting fasteners and remove

the oil strainer.
