1.5L REVOTORQ ENGINE
148

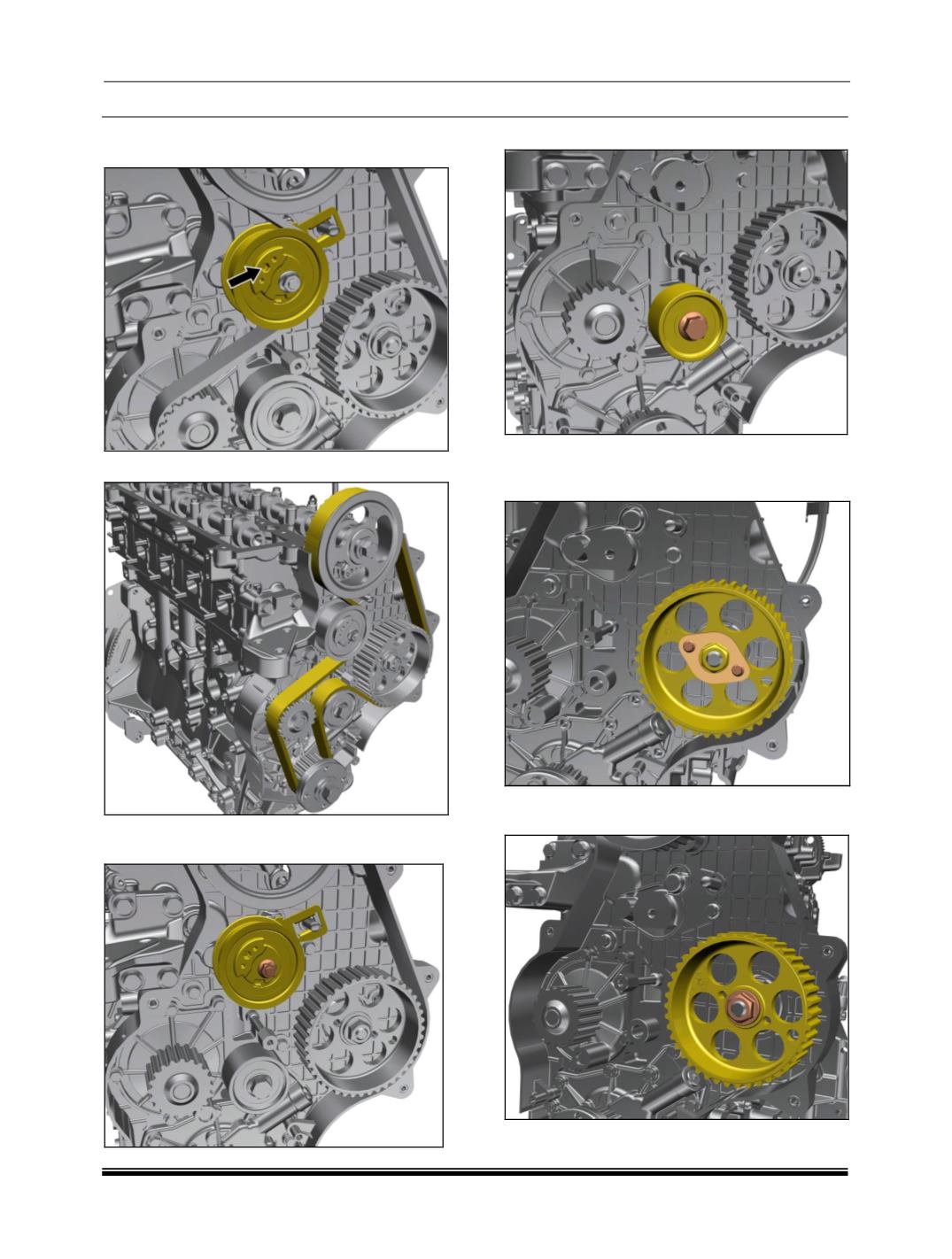

12. Relieve the tension on the belt by adjusting
auto tensioner.
13. Remove the belt from the assembly.
14. Remove the mounting fasteners and take out
the belt tensioner assembly.
15. Remove the belt idler assembly.
16. Using the special flange
(part no. 2547 0713
7103)
for FIP gear removal, loosen the gear
from the HP pump.
17. Remove the FIP gear and its mounting
fastner.
