1.5L REVOTORQ ENGINE

142

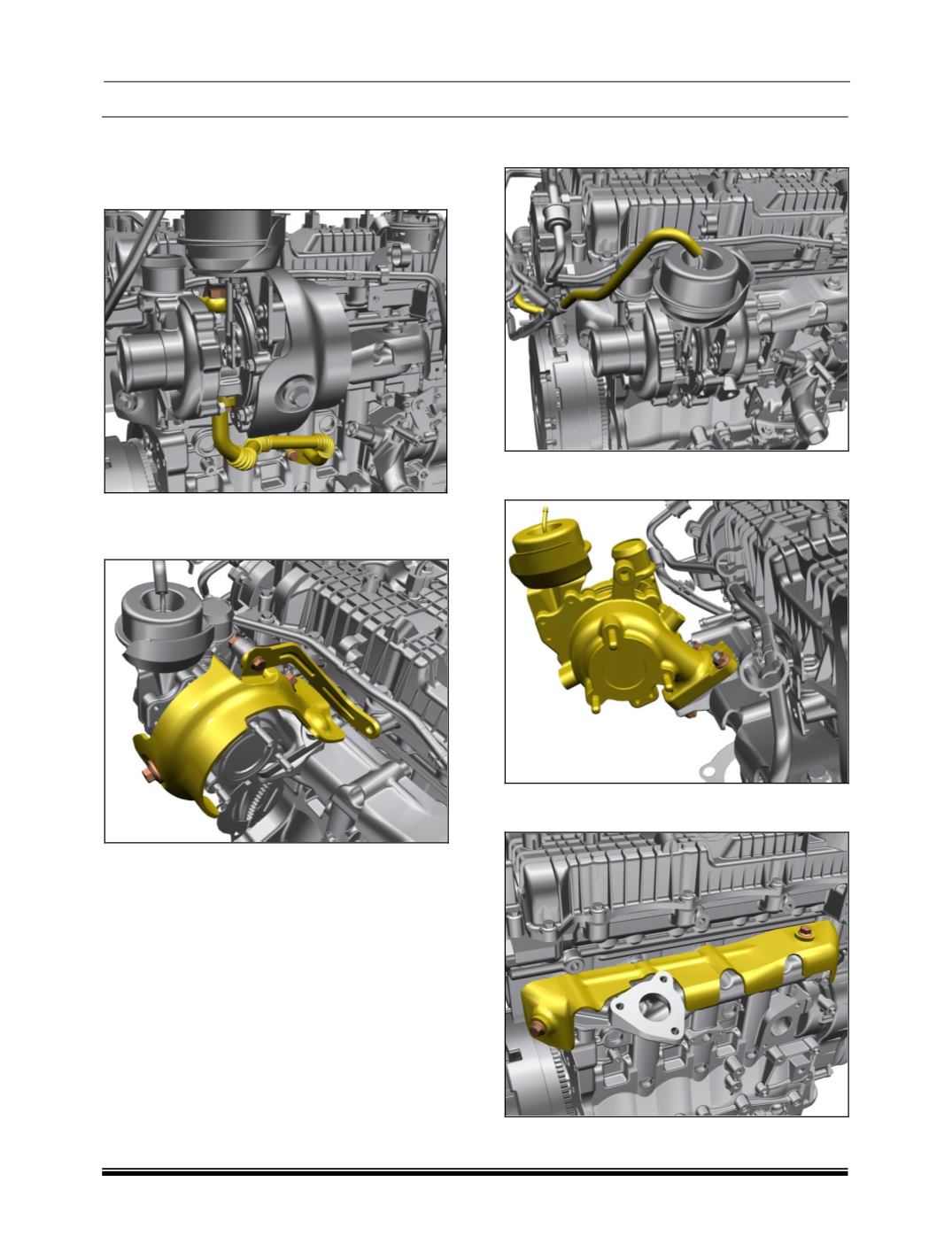

iv. REMOVAL OF EXHAUST MANIFOLD

1. Remove the mounting fasteners of the

lubrication lines connected to the turbocharger

and remove them.

2. Loosen and remove the mounting fasteners

and take out the turbo charger heat shield

along with the support bracket.

3. Disconnect the vacuum hose connected to the

turbocharger.

4. Loosen and remove the mounting fasteners

and take out the turbo charger assembly.

5. Loosen and remove the mounting fasteners

and take out the exhaust manifold heat shield.
