1.2L REVOTRON ENGINE
162
NOTE
Cam lobes should not be pressing any
valves.

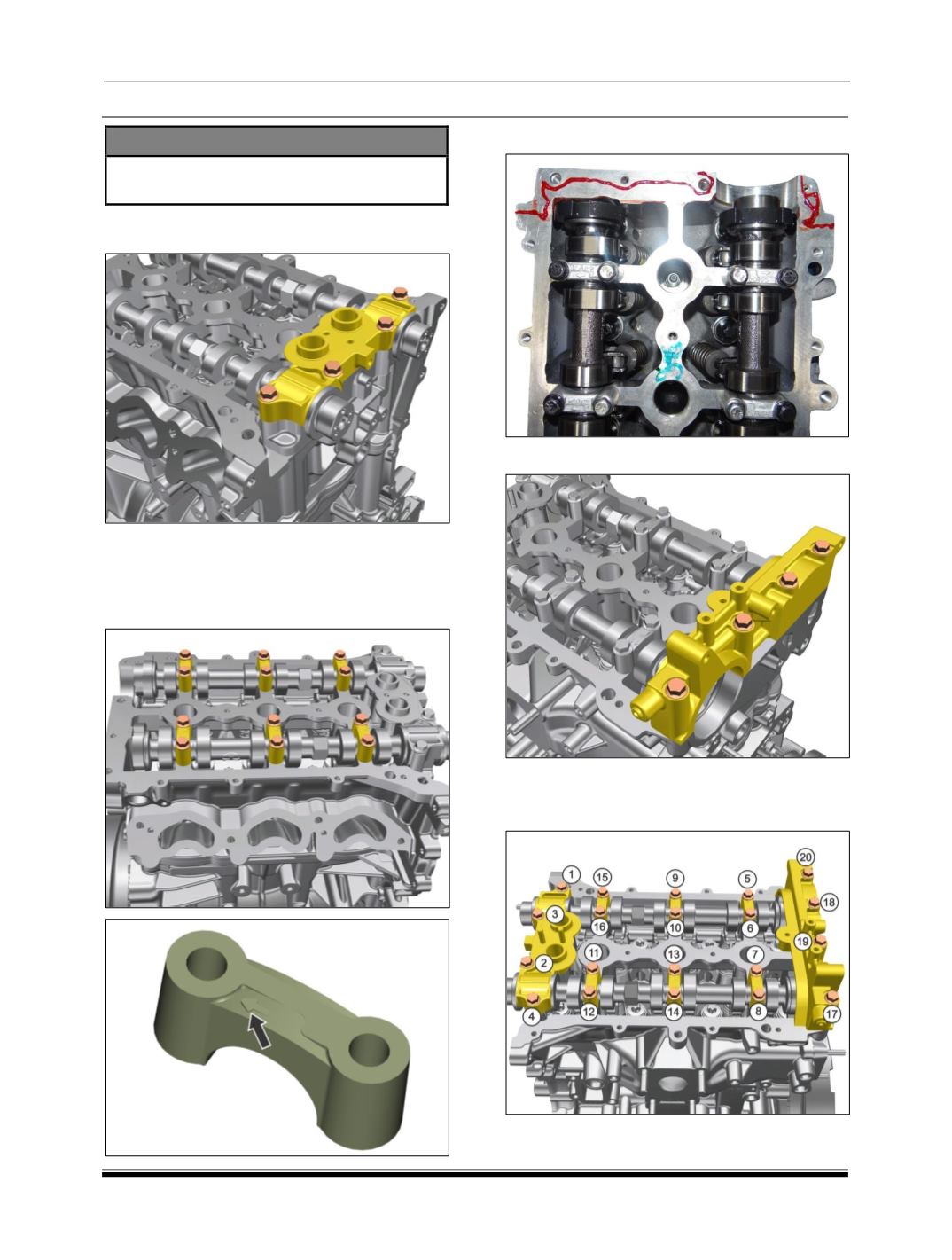

7. Assemble the ITG Bearing Cap Upper with
the mounting fasteners.
8. Assemble the Cylinder Head cam cap bolts
along with the washers, starting from the ends
of the cylinder head and working inwards to
the center. (Keep the arrow of cap in outward
direction.)
9. Apply sealant as shown below.
10. Assemble the rear intermediate bearing cap.
11. Bolts to be oiled at treads and seating
surface. Tighten the assemblies in sequence
as shown below with 1.5 ± 0.15kgfm torque:
