1.2L REVOTRON ENGINE

158

NOTE



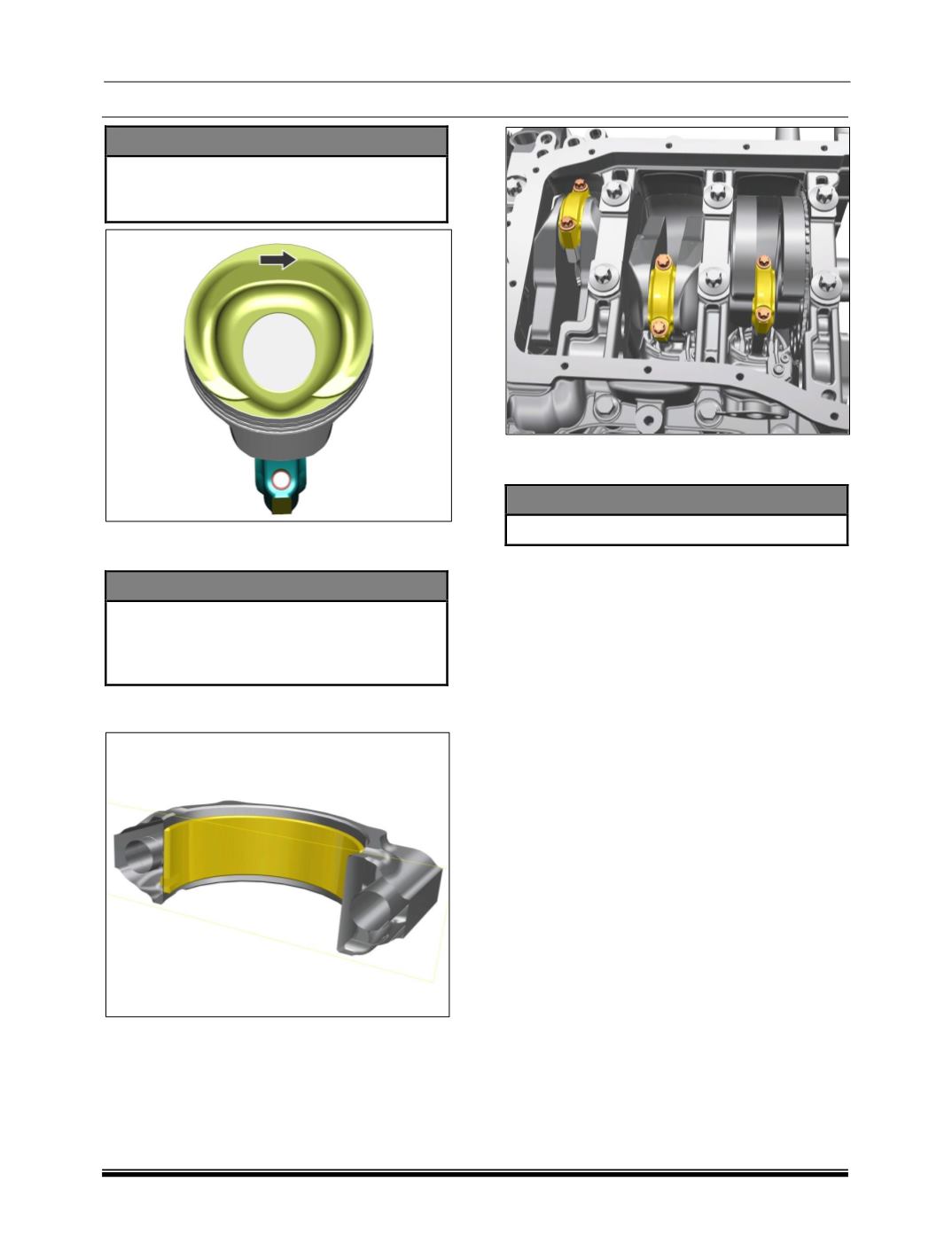

Ensure that the arrow mark on the piston

crown is facing the front side of engine

towards damper pulley side.

17. Turn crankshaft to bring piston to top bottom

dead center.

NOTE



While inserting piston connecting rod

assembly, ensure that crankshaft should

not damage due to connecting rod

assembly.

18. Assemble the connecting rod bearing caps

along with bearing shells.

19. Tighten the mounting nuts holding the

connecting rod bearing caps.

NOTE



Rotate the engine block at 180

0

20. Measure piston projection above crankcase

with the help of piston topping dial gauge
