1.2L REVOTRON ENGINE
127

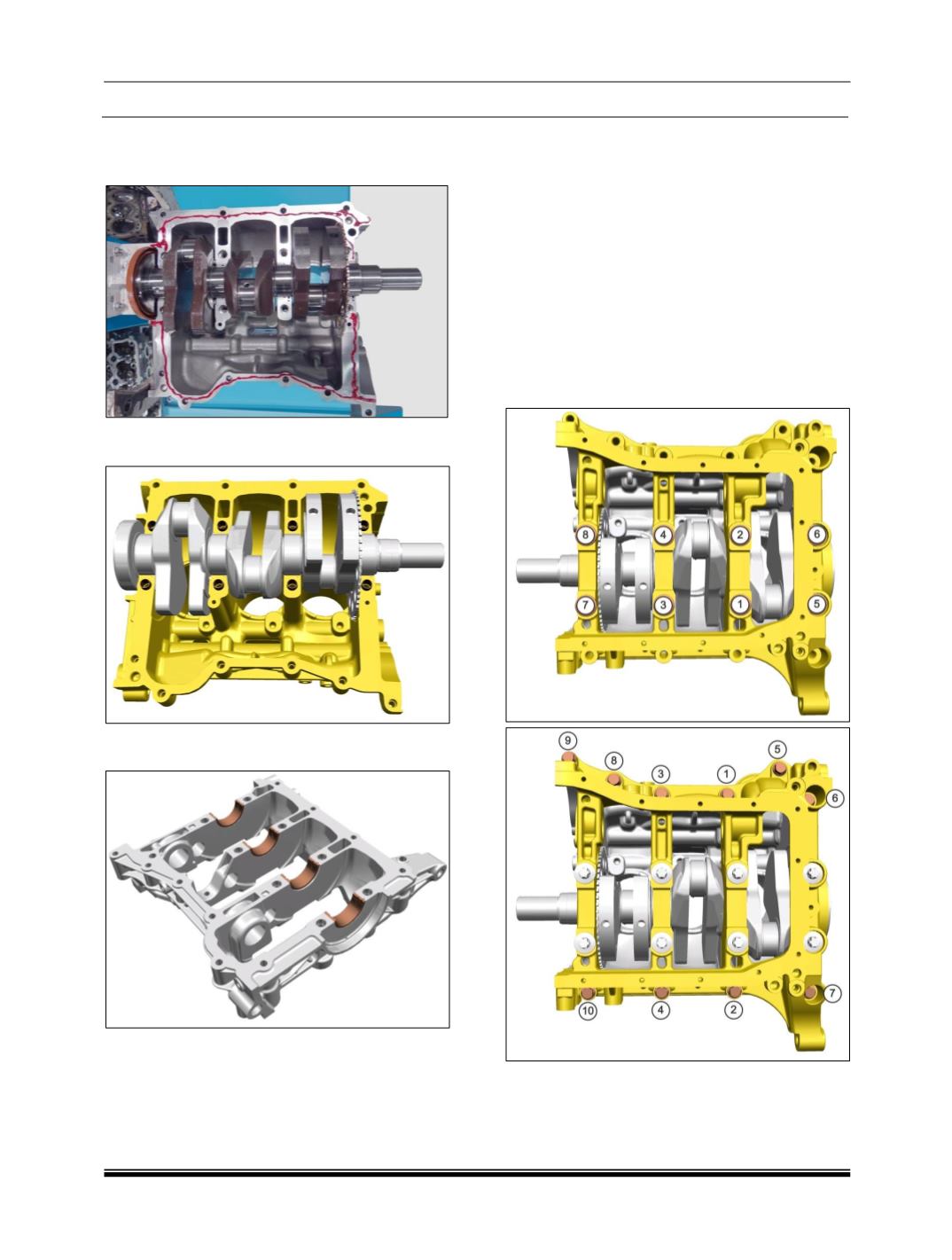

9. Spread the liquid red sealant on crankcase
without spilling the sealant in oil paths / inside
the block.
10. Insert the hollow dowels (8 no.s) into the
crankcase.
11. Assemble the lower bearing shell to the
bedplate. (Apply the coat of engine oil.)
12. Assemble the bed plate by tightening the
mounting bolts.
Sequence for tightening bolts to be followed as
mentioned below
a) Assemble block bedplate in given sequence
30% of the final torque and angle (15Nm +40°)
then loosen all bolts.
b) Assemble block bedplate in given sequence
30% of the final torque and angle (35Nm +85°)
then loosen all bolts.
c) Assemble block bedplate in given sequence
30% of the final torque and angle (50Nm ± 5
Nm with 120° ± 15°) then loosen all bolts.
d) Alternately all the machine screw to be
tightened simultaneously.
