FRONT SUSPENSION

22

NOTE

The top rubbers bushes to be re-fitted in exactly

same location and position, and cannot be

interchanged/swapped between upper and lower

bushes.

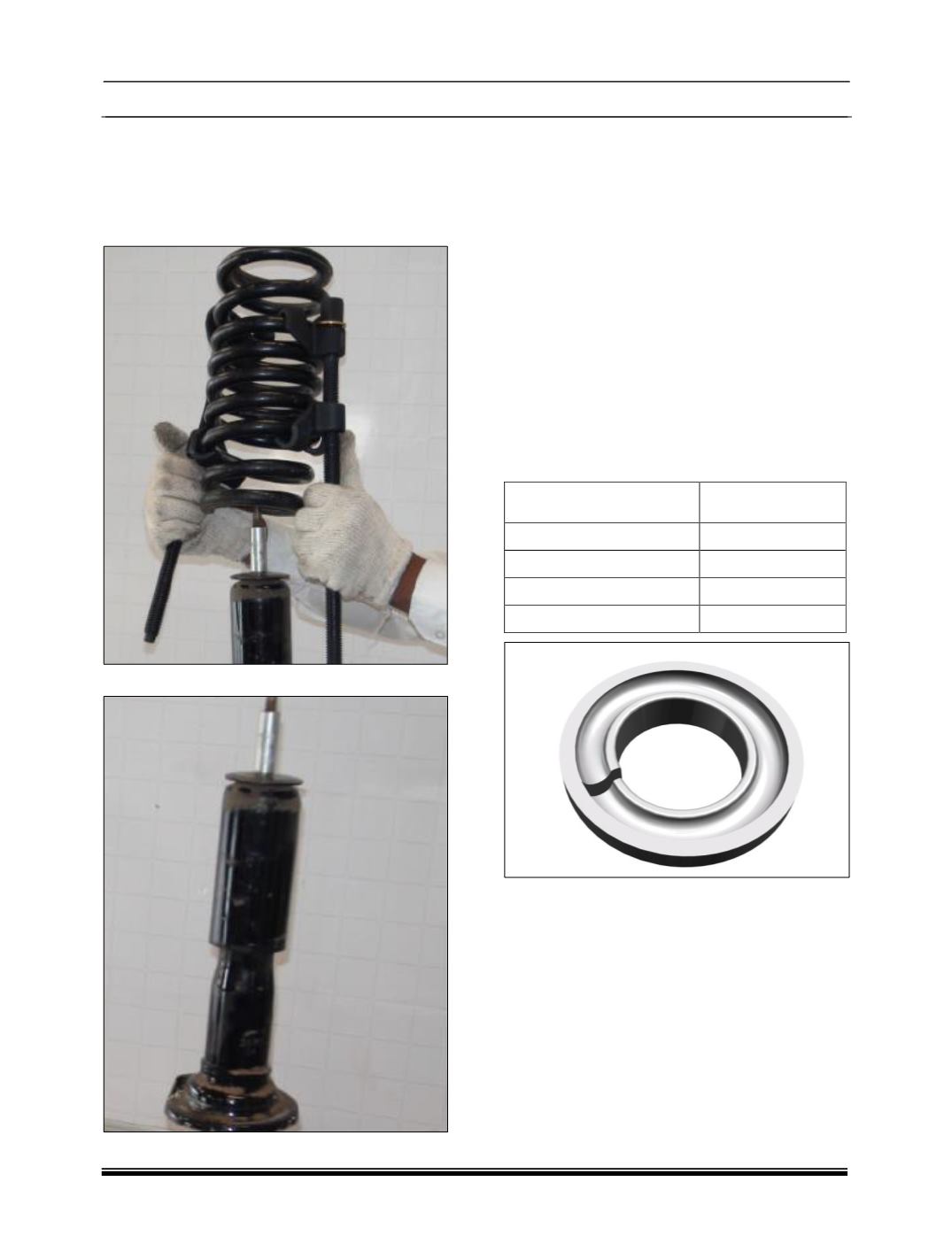

7. Remove the spring.

8. Removed the damper.

9. To be further dismantling by simply removing

Sleeve, Washer & Dust Cover.

ASSEMBLY

For assembly follow the reverse procedure of

removal. Use the same special tools which are

used for removal. Also follow the below

instructions.

NOTE



Ensure that spring is properly seated in the top

and bottom spring seat.



Ensure proper combination of spring and top

rubber spring seat before assembly.



Use coil springs of same color band for a

vehicle.



Spring seat should match with the color code

of coil spring as mentioned below.

SPRING SEAT

COIL SPRING

COLOR CODE

Spring seat top rubber

Sky blue

Spring seat top rubber

Light orange

Spring seat top rubber

Canary yellow

Spring seat top rubber

White



Marking on the spring is located at two coil

turns from the top.
