FRONT SUSPENSION
25

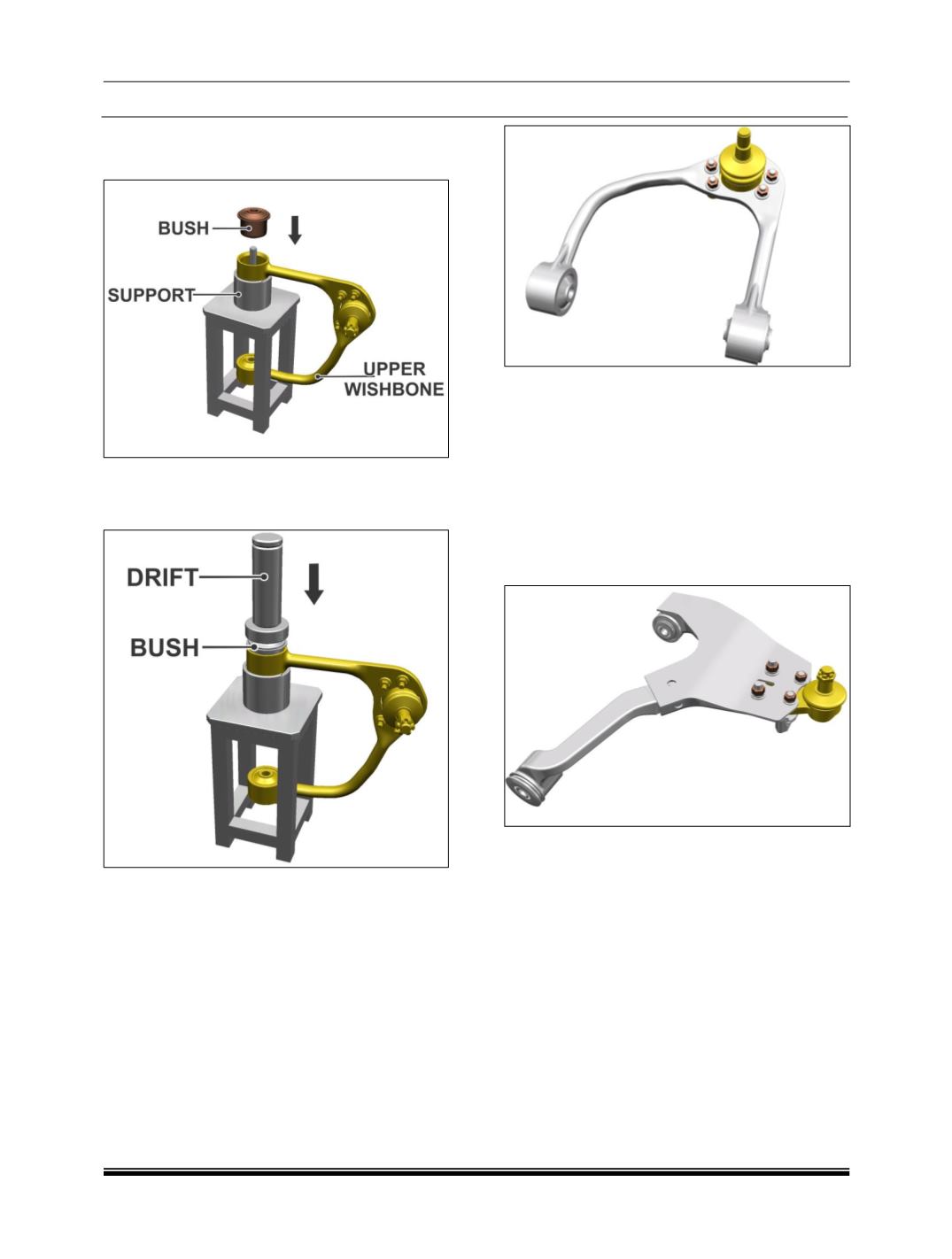

3. Place the Upper Wishbone on the Support
and mount the bush on the bush housing.
4. Place the Drift
over the bush and press the
same by using hydraulic press so as to insert
the bush in the upper wishbone.
IV UPPER WISHBONE BALL JOINT
REMOVAL
1. Loosen and remove the Upper wishbone ball
joint mounting nuts
(as shown in below figure)
using spanner.
INSTALLATION
Follow the reverse procedure for removal.
NOTE
Care to be taken for ball joint boot when tightening
ball joint on wishbone from damaging.
V LOWER WISHBONE BALL JOINT REMOVAL
1. Loosen and remove the lower wishbone ball
joint mounting nuts
(as shown in below figure)
using spanner.
INSTALLATION
Follow the reverse procedure for removal.
