942 / 1906
FRONT SUSPENSION
15
14.4 ON VEHICLE REPAIRS
A.

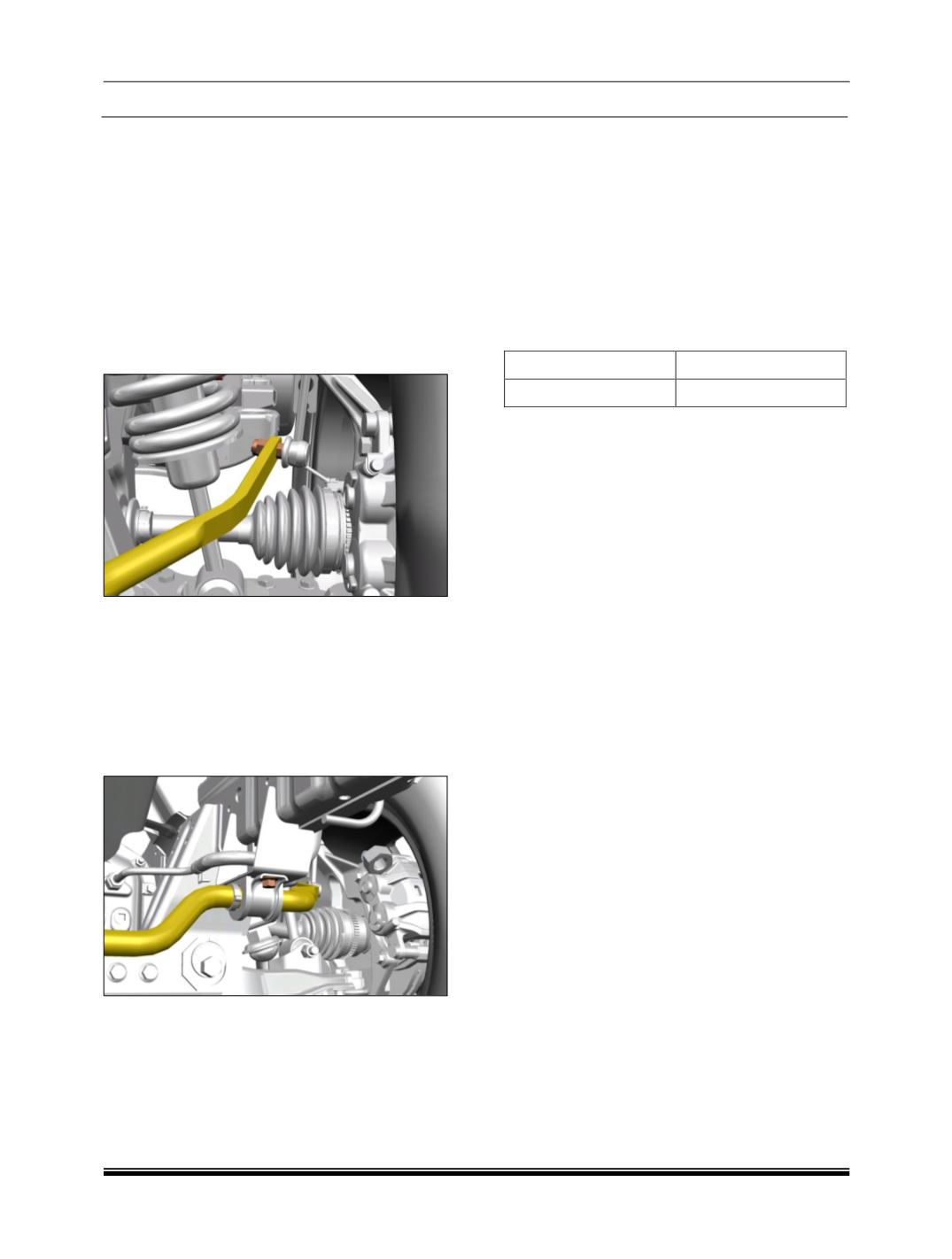

ANTI ROLL BAR (ARB) REMOVAL
1. Hoist the vehicle in two post lift and remove
front wheels.
2. Remove the stone guard.
3. Support the lower wishbone, Lock the ball
joint from being rotated using an Allen key
(5mm) and disconnect the antiroll bar from the
ball joint assembly by loosening the nyloc nut.
Follow the same procedure at the other end
also.
CAUTION
Make sure that before loosening the Nyloc nut
one should use Allen key (5mm) to hold the ARB
link ball stud, otherwise it may damage the ball
joint.
4. Loosen and remove mounting bolts of bearing
block clamp. Follow the same procedure at
the other end.
5. Remove the ARB.
INSPECTION
Check for any bends.
Check for any damage, grease leakage of
ARB link ball joint. Replace with new one if
necessary.
ASSEMBLY
For assembly follow the reverse procedure of
removal.
BALL JOINT PLAY
(ANTI ROLL BAR LINK)
Ball joint axial play
0.1 mm max.
Ball joint radial play
0.15 mm max.
